HSC-LR 5U KIT 2003

Parameter	Value
GTIN	4046356933605
Note	Made to Order (non-returnable)
Orderkey	2201796
Packing unit	10 pc
Country of origin	DE (Germany)
Custom tariff number	85472000
Minimum order quantity	10 pc
Color (RAL) (Dimensions)	orange
Type (Key Commercial Data)	5U
(Standards and regulations)	No hazardous substances above threshold values
Depth [ d ] (Item properties)	8.8 mm
Housing material (Dimensions)	Polyamide
Pieces per package (PCB data)	10
Width [ w ] (Item properties)	16.1 mm
Height [ h ] (Item properties)	67.95 mm
Order No. (Key Commercial Data)	2201796
Housing type (Key Commercial Data)	Component housing
Mounting type (Key Commercial Data)	Snap in
Weight per Piece (excluding packing)	4.520 g
Denomination packing units (PCB data)	Pcs.
China RoHS (Standards and regulations)	Environmentally friendly use period: unlimited = EFUP-e
Mounting position (Ambient conditions)	Vertical (horizontal DIN rail)
Ambient temperature (assembly) (Material data)	-5 °C ... 100 °C
Ambient temperature (operation) (Material data)	-40 °C ... 105 °C (depending on power dissipation)
Brief article description (Key Commercial Data)	Mounting base housing
Flammability rating according to UL 94 (Dimensions)	V0
Relative humidity (storage/transport) (Material data)	80 %
Ambient temperature (storage/transport) (Material data)	-40 °C ... 70 °C
Flammability rating according to UL 94 (Packaging information)	V0

Rail Box, 5U, Lock and Release System, Width: 16.1 mm, Height: 67.95 mm, Depth: 8.8 mm, Color: Orange (2003)

Technical specifications and performance data

Installation and operation guide

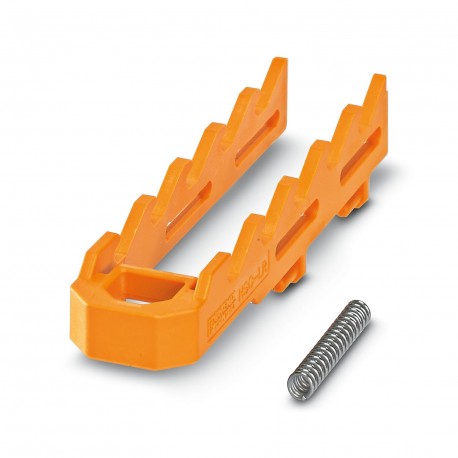

HSC-LR 5U KIT 2003 2201796 PHOENIX CONTACT Mounting base housing
