HS LC-D5CS-8,5

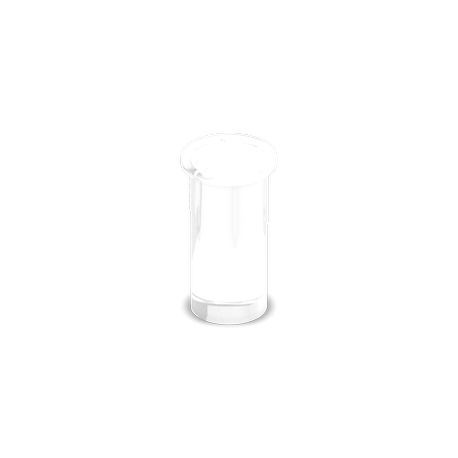

HS LC-D5CS-8,5 1474368 PHOENIX CONTACT Simple, passive, rigid light conductor, can be used for ME, ME MAX, M..
$1.38USD
7291 in stock
Key Specifications
Color:transparent
length:8.5 mm
Diameter:5 mm
Execution:Passive, rigid
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | transparent |
| length | 8.5 mm |
| Diameter | 5 mm |
| Execution | Passive, rigid |
| Head shape | Hex socket head |
| dimensions | 3 mm (Pressing length) |
| Orientation | vertical |
| No. of poles | 1 |
| Product Type | FO conductor |
| Bore diameter | 4.2 mm |
| General notes | Please refer to the data sheet of the product series in the download area. |
| Conductor type | Single Light Conductor |
| ESD protection | < 4 kV |
| Number of views | 1 (1 set x 1 column) |
| Color (Fiber optic) | transparent |
| Insulation material | Polycarbonate |
| Max. IP code to be reached | Ip20 |
| Conductor cross-section AWG | (converted according to IEC) |
| Ambient temperature (operating) | -40 °C ... 85 °C |
Product Description
Single, passive, rigid light conductor, can be used for ME, ME MAX, ME-IO, ME PLC and EH enclosures (enclosure modification required)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
