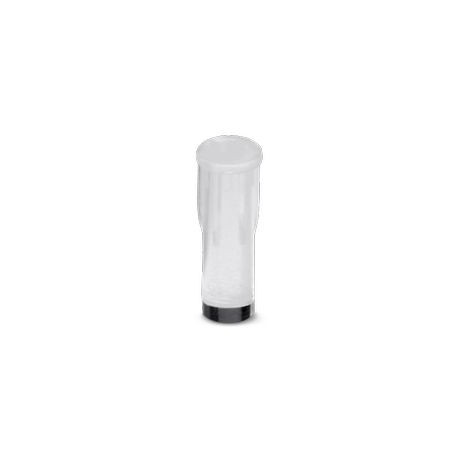

HS LC-D3,2CS-7,5
HS LC-D3,2CS-7,5 1474366 PHOENIX CONTACT Simple, passive, rigid light conductor, can be used for ME, ME MAX,..
$0.00USD
3879 in stock
Key Specifications
Type:passive, rigid
Color:transparent
Length:7.5 mm
General:Refer to the data sheet for the range in the download area.
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | passive, rigid |
| Color | transparent |
| Length | 7.5 mm |
| General | Refer to the data sheet for the range in the download area. |
| Diameter | 3.2 mm |
| Alignment | Vertical |
| Head form | Countersunk head |
| Dimensions | 3 mm (Press-in length) |
| Product type | Fiber optic |
| Hole diameter | 2.8 mm |
| Conductor type | Single light guide |
| ESD protection | < 4 kV |
| Cross section AWG | (converted acc. to IEC) |
| Color (Light guide) | transparent |
| Insulating material | Polycarbonat |
| Number of positions | 1 |
| Number of indicators | 1 (1 row x 1 column) |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
Product Description
Single light guide, passive, rigid, can be used for the ME, ME-MAX, ME-IO, ME PLC, and EH housing ranges (housing must be processed)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
