HLP-60H-36

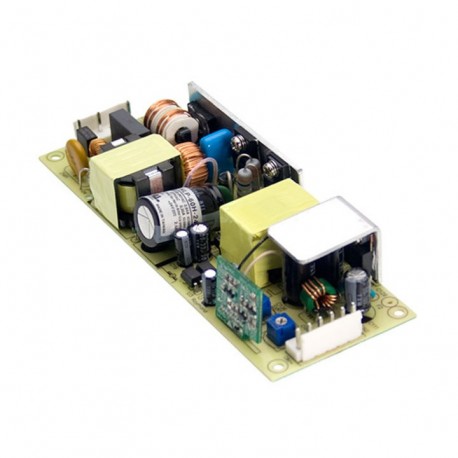

HLP-60H-36 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 36VDC / 1.7A, open frame, Dimmin..
$0.00USD
3711 in stock
Key Specifications
Name:HLP-60H-36
State:Recommended Model
Format:Open Format
Series:HLP-60H
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | HLP-60H-36 |
| State | Recommended Model |
| Format | Open Format |
| Series | HLP-60H |
| Dimming | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approvals | CCC, CE, UL |
| Power (W) | 61,20 |
| Width (mm) | 53.00 |
| Height (mm) | 27.00 |
| AC input Max | 305,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 61.2 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 147.00 |
| Long Description | LED driver.Specially designed to feed LED strips.Open format typePCBS.Input range90-305Vca47-63Hz.Output in constant current1700mA.Adjustable by external potentiometer (1000-1700mA).Range of output voltage with current mode constant21.6 to 36Vccaccording to demand load.The output voltage in voltage mode constant36Vcc. Adjustable by external potentiometer (33-40Vcc).Power:61,2 W.Efficiency typical:90%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):147 x 53 x 27mm.3 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output voltage and the output current can be adjusted byexternal potentiometerslocated in the plate of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.With format, open PCB type. The series HLP is intended for applications of LED lighting. Suitable for dry environments and interior. Burn test at 100% load.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| Output current mA | 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700 |
| Intensity of Minimum Output (mA) | 1.000,00 |
| Intensity of Output Maximum (mA) | 1.700,00 |
