In Stock Hot Product
HGSM 25-E Pack

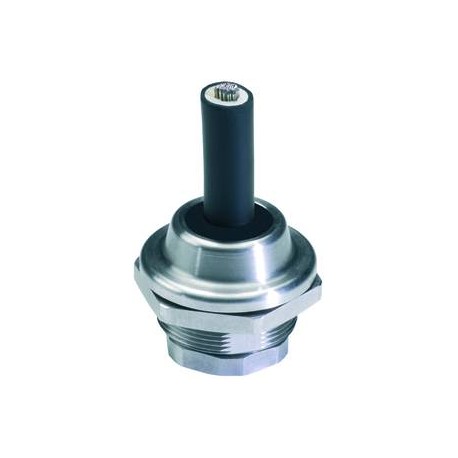

HGSM 25-E Pack 10101856 WISKA AISI 303 stainless glands, IP69K pack together for 4 to 16mm range, M25 thread
$0.00USD
4153 in stock
Key Specifications
BxL (Features):30x8mm
Lead (Features):0,75
Type (Features):HGSM 25-E pack
Advice (Features):Incl. sealing rings, locknut
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| BxL (Features) | 30x8mm |
| Lead (Features) | 0,75 |
| Type (Features) | HGSM 25-E pack |
| Advice (Features) | Incl. sealing rings, locknut |
| LxWxS (max) (Features) | 23x25x5,5mm |
| Thread type (Features) | M |
| Packing unit (Features) | 1 |
| Key width SW1 (Features) | 21 mm |
| Key width SW2 (Features) | 30 mm |
| Temp. range max (Features) | 120 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 19,5 mm - 27,5 mm |
| WISKA-Order no. (Features) | 10101856 |
| Protection class (Features) | IP69, IP68 (5 bar 30 min) |
| Collar diameter E1 (Features) | 23 mm |
| Collar diameter E2 (Features) | 33 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Stainless steel A2 (1.4305) |
| Ø cable diameter max (Features) | 16 mm |
| Ø cable diameter min (Features) | 4 mm |
| Ø Connection thread D (Features) | 25 |
| Material sealing gasket (Features) | EPDM |
Product Description
Cable gland, stainless steel, M25
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
