HF7A-400/5A

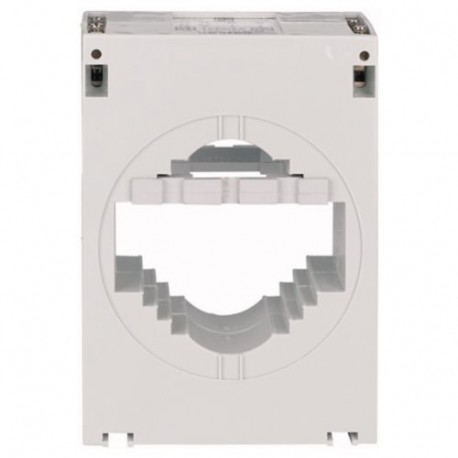

HF7A-400/5A 741H0011 Y7-135466 EATON ELECTRIC HF7A Current Transformer, 400A/5A
$0.00USD
3532 in stock
Key Specifications
Feature Name:Feature Value
Model (EF000010):Through-feed current converter
Calibrated (EF008836):No
Snap mounting (EF007462):Yes
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Model (EF000010) | Through-feed current converter |
| Calibrated (EF008836) | No |
| Snap mounting (EF007462) | Yes |
| Width opening (EF012758) | 80 mm |
| Accuracy class (EF008842) | 3 |
| Height opening (EF012757) | 60 mm |
| Opening diameter (EF005153) | 65 mm |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Rated primary current (EF007405) | 400 A |
| Rated secondary current (EF007471) | 5 A |
| With contact protection (EF008186) | No |
| Number of primary inputs (EF006947) | 1 |
| Overcurrent limiting factor (EF007511) | FS 10 |
| Rated secondary apparent power (EF007470) | 5 VA |
Product Description
HF7A-400/5A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
