In Stock Hot Product
HEP-320-48

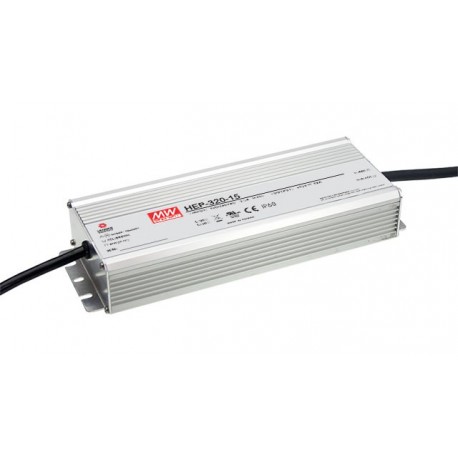

HEP-320-48 MEANWELL AC-DC Single output industrial power supply with PFC, Output 48VDC / 6.7A, fixed Vo-Io l..
$0.00USD
4941 in stock
Key Specifications
Name:HEP-320-48
Format:Box
Series:HEP-320
Approvals:CE, UL
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | HEP-320-48 |
| Format | Box |
| Series | HEP-320 |
| Approvals | CE, UL |
| Power (W) | 321,60 |
| Subformato | IP68 |
| Width (mm) | Ninety |
| Height (mm) | 43.8 |
| AC input Max | 305,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.750,00 |
| Output voltage | 48,00 |
| Peak Power (W) | 321.6 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | Two hundred eighty two |
| Long Description | Switch-mode power supply for extreme environments.Format in metal boxIP68.Input range90-305Vca47-63Hz.Output voltage48vdc. Adjustable by potentiometer (43-52Vcc).Output intensity6.7. Range of output current 0-6,7 according To the demand load.Intensity of maximum output adjustable by potentiometer (3,35-6.7).Power:321,6 W.Factor Corrector of a Power >0,95.Efficiency typical:93,5%.Working temperature from-55up+70 ° C(refer to the technical sheet to see the curves of drift).Protection against transients6KV.Resistant to vibrations10G.Operating altitude up to5000 metres.Dimensions (Length x Width x Height):252 x 90 x 43.8 mm6 years of warranty.Manufacturer: MEAN WELL.The series HEP are sources of industrial power ready to work in extreme environments of dust, moisture, vibration, temperature and altitude. The whole series has a box of sturdy aluminum filled with a special silicone heat-conductive and electrically insulating, and moisture, this allows a better heat dissipation and greater resistance to water. With an innovative design feature with a high efficiency to reduce the power consumption and heat generation. They are ideal for applications where we don't want to use fans and we need a source robust.This version IP68 is only made under minimum orders of 100 units and you can order multiples of 100 (100, 200, 300,..). If you want to try a unit, please contact us. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 6,00 |
| Country of Origin | Taiwan |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch-mode power supply for extreme environments.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
