HDFKV 95/Z

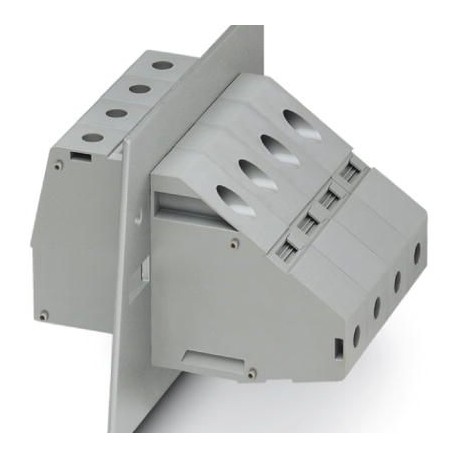

HDFKV 95/Z 0714105 PHOENIX CONTACT Panel feed-through terminal block, Connection method: Screw connection, L..
$0.00USD
4715 in stock
Key Specifications
:800 V (With metal panels over 2.5 mm ... 5 mm)
Note:Terminal sleeve
Color:gray
Width:25 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 800 V (With metal panels over 2.5 mm ... 5 mm) | |
| Note | Terminal sleeve |
| Color | gray |
| Width | 25 mm |
| Length | 103.7 mm |
| Screw thread | M8 |
| Connection side | Level 1 ext. 1 |
| Open side panel | nein |
| Plate thickness | 1 mm ... 6 mm |
| Number of levels | 1 |
| Pollution degree | 3 |
| Stripping length | 27 mm |
| Connection method | Screw connection |
| Nominal current IN | 232 A |
| Nominal voltage UN | 1000 V (With metal panels of 1 mm ... 2.5 mm) |
| Number of positions | 1 |
| Rated surge voltage | 8 kV |
| Maximum load current | 232 A |
| Overvoltage category | III |
| Nominal cross section | 95 mm² |
| Number of connections | 2 |
| Tightening torque max | 20 Nm |
| Tightening torque, min | 15 Nm |
| Insulating material group | I |
| Internal cylindrical gage | B12 |
| Conductor cross section AWG max. | 3/0 |
| Conductor cross section AWG min. | 4 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid max. | 95 mm² |
| Conductor cross section solid min. | 25 mm² |
| Conductor cross section flexible max. | 95 mm² |
| Conductor cross section flexible min. | 35 mm² |
| Flammability rating according to UL 94 | V0 |
| 2 conductors with same cross section, solid max. | 35 mm² |
| 2 conductors with same cross section, solid min. | 16 mm² |
| 2 conductors with same cross section, stranded max. | 35 mm² |
| 2 conductors with same cross section, stranded min. | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 95 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 95 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 35 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 35 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 16 mm² |
Product Description
Terminal block, connection type: Screw connection with traction capsule, Screw connection with traction capsule, number of poles: 1, charging current: 232 A, cross-section: 25 mm² - 95 mm², conductor
