HDFK 50-IB

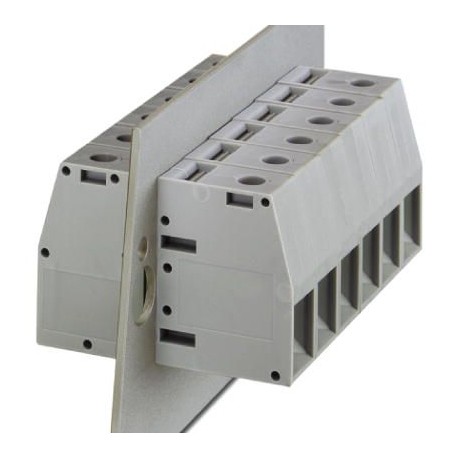

HDFK 50-IB 3026214 PHOENIX CONTACT Panel feed-through terminal block
$0.00USD
4745 in stock
Key Specifications
GTIN:4017918283056
Orderkey:3026214
Packing unit:10 pc
Pitch (General):18.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918283056 |
| Orderkey | 3026214 |
| Packing unit | 10 pc |
| Pitch (General) | 18.8 mm |
| Width (General) | 18.8 mm |
| Country of origin | GR (Greece) |
| Note (Dimensions) | Terminal sleeve |
| (Connection data) | IEC 60947-7-1 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Screw thread (Dimensions) | M6 |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection side (Dimensions) | Level 1 int. 1 |
| Stripping length (Dimensions) | 24 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 8 Nm |
| Tightening torque, min (Dimensions) | 6 Nm |
| Weight per Piece (excluding packing) | 126.210 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Internal cylindrical gage (Dimensions) | B10 |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 150 A |
| Nominal voltage UN (Key Commercial Data) | 690 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 1 |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Overvoltage category (Key Commercial Data) | III |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 1/0 |
| Conductor cross section AWG min. (Dimensions) | 6 |
| Conductor cross section solid max. (Dimensions) | 50 mm² |
| Conductor cross section solid min. (Dimensions) | 16 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 50 mm² |
| Conductor cross section flexible min. (Dimensions) | 16 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| 2 conductors with same cross section, solid max. (Dimensions) | 16 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 16 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 50 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 6 mm² |
Product Description
Wall terminal block, connection type: Screw connection with traction capsule, Screw connection with traction capsule, number of poles: 1, load current: 150 A, cross-section: 16 mm² - 50 mm², conductor
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
