HDFK 10/Z

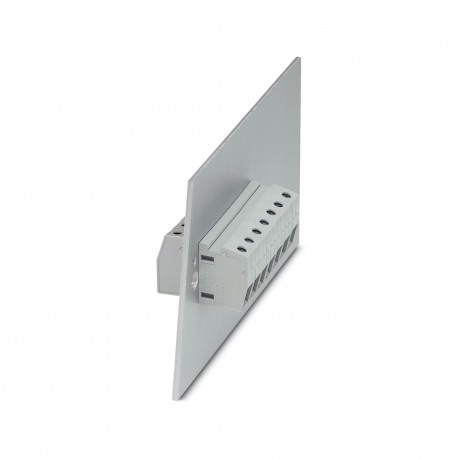

HDFK 10/Z 0709754 PHOENIX CONTACT Panel feed-through terminal block
$0.00USD
4439 in stock
Key Specifications
:• Observe the technical data provided here and refer to the documents listed under “Downloads”. The download area contains important information, such as installation notes, technical drawings, and 3D data.
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Pitch:10.1 mm
Result:Test passed
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • Observe the technical data provided here and refer to the documents listed under “Downloads”. The download area contains important information, such as installation notes, technical drawings, and 3D data. | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch | 10.1 mm |
| Result | Test passed |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Width [w] | 10.1 mm |
| Application | Metal wall 1.0 mm ... 2.5 mm |
| Height [h3] | 28.5 mm |
| Height [h4] | 31 mm |
| Length [l1] | 18.1 mm |
| Length [l2] | 24.5 mm |
| Safety note | • Only electrically qualified personnel may install and operate the product.To recognize and prevent danger, the qualified personnel must be familiar with the basics of electrical engineering. |
| Sweep speed | 1 octave/min |
| Temperature | 960 °C |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Product type | Panel feed-through terminal block |
| Specification | IEC 60947-7-1:2009-04 |
| Number of rows | 1 |
| Product family | HDFK 10 |
| Color (Housing) | gray (7042) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 09 |
| Connector system | HDFK 10 |
| Contact material | Cu alloy |
| Stripping length | 10 mm |
| Time of exposure | 30 s |
| Connection method | Screw connection with tension sleeve |
| Tightening torque | 1.5 Nm ... 1.8 Nm |
| Type of packaging | packed in cardboard |
| Nominal current IN | 57 A |
| Nominal voltage UN | 400 V (With metal panels of 1 mm ... 2.5 mm) |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 1 |
| Number of potentials | 1 |
| Overvoltage category | III |
| Rated voltage (II/2) | 1000 V |
| Nominal cross section | 10 mm² |
| Number of connections | 2 |
| Rated voltage (III/2) | 500 V |
| Rated voltage (III/3) | 400 V |
| Test duration per axis | 2.5 h |
| Surface characteristics | tin-plated |
| Insulating material group | I |
| Internal cylindrical gage | B6 |
| CTI according to IEC 60112 | 600 |
| Rated surge voltage (II/2) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (III/3) | 6 kV |
| Conductor cross section rigid | 0.5 mm² ... 16 mm² |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Rated insulation voltage (II/2) | 1000 V |
| Conductor cross section flexible | 0.5 mm² ... 10 mm² |
| Rated insulation voltage (III/2) | 500 V |
| Rated insulation voltage (III/3) | 400 V |
| minimum creepage distance (II/2) | 5.5 mm |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| minimum creepage distance (III/2) | 5.5 mm |
| minimum creepage distance (III/3) | 5.5 mm |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI 600 |
| 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum clearance value - non-homogenous field (III/2) | 5.5 mm |
| minimum clearance value - non-homogenous field (III/3) | 5.5 mm |
| Connection direction of the conductor to plug-in direction | 0 ° |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 10 mm² |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.5 mm² / solid / > 20 N |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 6 mm² |
Product Description
Wall terminal block, connection type: Screw connection with traction capsule, Screw connection with traction capsule, number of poles: 1, charging current: 57 A, cross-section: 0.5 mm² - 16 mm², condu
