In Stock Hot Product
HC-STA-D25-BCSFS-PLR-BK

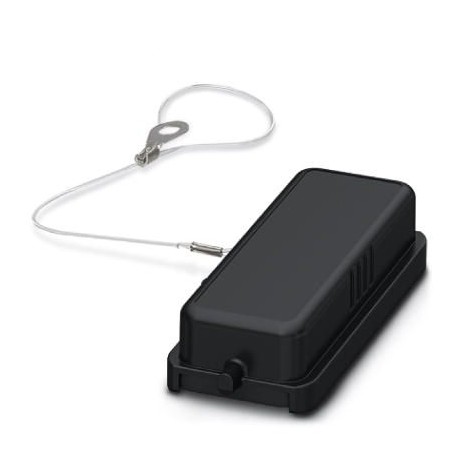

HC-STA-D25-BCSFS-PLR-BK 1424401 PHOENIX CONTACT Protective covers
$0.00USD
3592 in stock
Key Specifications
GTIN:4055626371412
Orderkey:1424401
Catalog page:Page 525 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626371412 |
| Orderkey | 1424401 |
| Catalog page | Page 525 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | CN (China) |
| Custom tariff number | 85389099 |
| Size (Ambient conditions) | D25 |
| Color (Ambient conditions) | black |
| Width (Key Commercial Data) | 33 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 19 mm |
| Length (Key Commercial Data) | 80 mm |
| Connection (Ambient conditions) | Plastic protective cover for short-term protection |
| Housing type (Ambient conditions) | Protective cover |
| Locking type (Ambient conditions) | for single locking latch |
| Weight per Piece (excluding packing) | 70.000 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Assembly instructions (Ambient conditions) | Double eyelet for mounting on a cable / below screw head |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 100 °C |
| Material, protective cover (Ambient conditions) | PC |
| Flammability rating according to UL 94 (General) | V0 |
| Degree of protection of housing (IP) (Dimensions) | IP66 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
D25 protective cap, for longitudinal flange, protective cap material: PA, height: 19 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
