HC-STA-D07-BCSFS-PL-BK

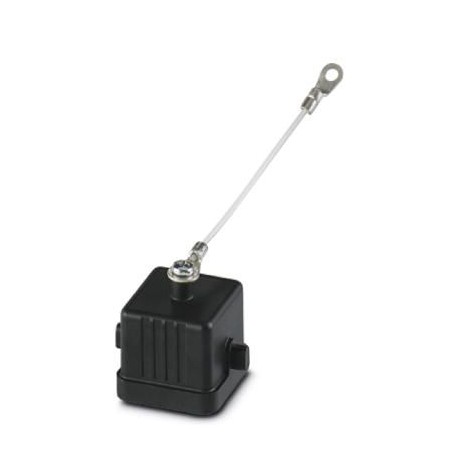

HC-STA-D07-BCSFS-PL-BK 1419273 PHOENIX CONTACT Protective covers
$0.00USD
3664 in stock
Key Specifications
GTIN:4055626160245
Orderkey:1419273
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Catalog page:Page 652 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626160245 |
| Orderkey | 1419273 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 652 (C-2-2017) |
| Packing unit | 1 pc |
| (Dimensions) | IP65 |
| Country of origin | CN (China) |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 85389099 |
| Note (Ambient conditions) | For use on the panel mounting base |
| Size (Ambient conditions) | D7 |
| Type (Ambient conditions) | For supporting base element with single locking latch |
| Color (Ambient conditions) | black |
| Width (Key Commercial Data) | 26.5 mm |
| Height (Key Commercial Data) | 30 mm |
| Length (Key Commercial Data) | 26.5 mm |
| Connection (Ambient conditions) | Plastic protective cover for short-term protection |
| Housing type (Ambient conditions) | Protective cover |
| Locking type (Ambient conditions) | for single locking latch |
| Weight per Piece (excluding packing) | 7.700 g |
| Housing material (Ambient conditions) | PA |
| Degree of protection (IP) (Dimensions) | IP54 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 100 °C |
| Material, protective cover (Ambient conditions) | PA |
| Flammability rating according to UL 94 (Ambient conditions) | V0 (Polyamide housing) |
Product Description
D7 protection cap, for longitudinal flange, material: PA, protective cap material: PA, height: 30 mm, seal: no, Standard, retaining cord ring diameter: 4 mm, with lanyard, for pin inserts
