HC-STA-B10-CHWS-1TTP16-ELC-AL

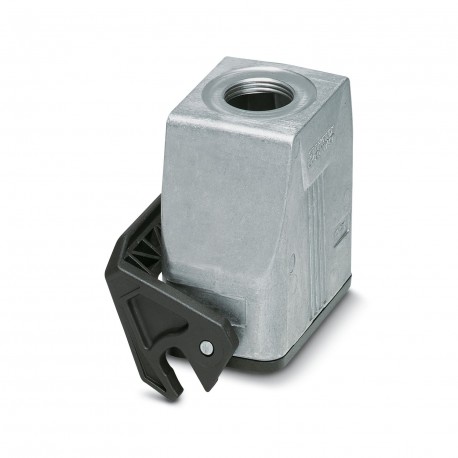

HC-STA-B10-CHWS-1TTP16-ELC-AL 1412587 PHOENIX CONTACT Housing
$0.00USD
4299 in stock
Key Specifications
:IP67
Type:B10
Width:44 mm
Height:73 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IP67 | |
| Type | B10 |
| Width | 44 mm |
| Height | 73 mm |
| Length | 73 mm |
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Application | Standard |
| Cable outlet | straight |
| Housing type | Coupling housings |
| Locking type | Latch |
| Product type | Housing with locking latch |
| Seal material | NBR, conductive |
| Impact strength | IK08 |
| Article revision | 02 |
| Housing material | Die-cast aluminum, salt water resistant |
| Dimensional drawing | |
| Pg screw connection | none |
| Degree of protection | IP66 |
| No. of cable outlets | 1 |
| Locking latch material | PA |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| Housing surface material | uncoated |
| Type of the screw connection | 1x Pg16 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 | V0 (Interlock) |
Product Description
B10 coupling housing, with longitudinal flange, material: Die-cast aluminum, seawater resistant, cable outlets: 1, straight, 1x Pg16, height: 73 mm, cable gland: without, Standard
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
