In Stock Hot Product
HC-SKV 13 MS

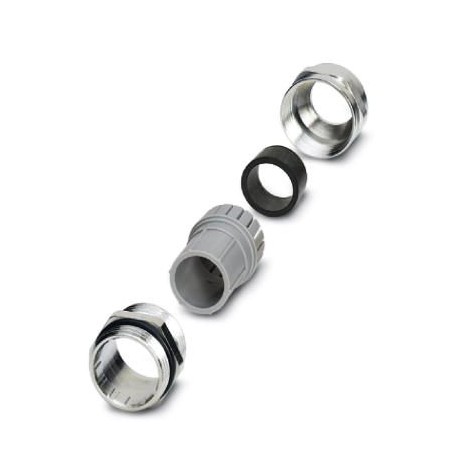

HC-SKV 13 MS 1676925 PHOENIX CONTACT Screw connection
$0.00USD
4787 in stock
Key Specifications
GTIN:4017918129545
Note:Made to Order (non-returnable)
Orderkey:1676925
(General):No hazardous substances above threshold values
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918129545 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1676925 |
| (General) | No hazardous substances above threshold values |
| Packing unit | 10 pc |
| (Dimensions) | IP65 |
| Country of origin | DE (Germany) |
| China RoHS (General) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85369010 |
| Shielded (Ambient conditions) | no |
| Degree of protection (Dimensions) | IP65 |
| Weight per Piece (excluding packing) | 28.630 g |
| No. of conductors (Ambient conditions) | 1 |
| Cable gland material (Ambient conditions) | Nickel-plated brass |
| Wrench size, support (Key Commercial Data) | 13 mm |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C (static) |
| Wrench size, union nut (Key Commercial Data) | 8 mm |
| External cable diameter (Key Commercial Data) | 8 mm ... 13 mm |
| Thread type on connection side (Ambient conditions) | Pg13,5 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
