HC-M-KV-T-M20

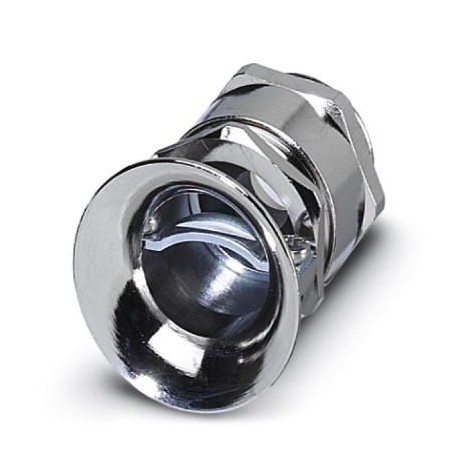

HC-M-KV-T-M20 1646188 PHOENIX CONTACT Cable gland
$8.46USD
1228 in stock
Key Specifications
GTIN:4017918941321
Orderkey:1646188
Catalog page:Page 707 (C-2-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918941321 |
| Orderkey | 1646188 |
| Catalog page | Page 707 (C-2-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 74153300 |
| (Ambient conditions) | 8 Nm (Union nut) |
| Halogen-free (General) | no |
| Minimum order quantity | 10 pc |
| Color (Ambient conditions) | silver |
| Torque (Ambient conditions) | 12 Nm (Support sleeve) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Length (Key Commercial Data) | 40 mm |
| Shielded (Ambient conditions) | no |
| O-ring material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 51.550 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of protection (IP) (Dimensions) | IP65 |
| No. of conductors (Ambient conditions) | 1 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Cable seal material (Ambient conditions) | Perbunan |
| Cable gland material (Ambient conditions) | Nickel-plated brass |
| Wrench size, support (Key Commercial Data) | 24 mm |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 80 °C (static) |
| Wrench size, union nut (Key Commercial Data) | 24 mm |
| External cable diameter (Key Commercial Data) | 7.5 mm ... 15 mm |
| Hexagon angular dimension (Key Commercial Data) | 32 mm |
| Connecting thread diameter (Key Commercial Data) | 20 mm |
| Thread type connection side (Ambient conditions) | M20 x 1.5 |
| Thread type on connection side (Ambient conditions) | M20 |
| Length of the connecting thread (Key Commercial Data) | 6 mm |
| Length without connecting thread (Key Commercial Data) | 34 mm |
| Clamping range of the strain relief clip (Key Commercial Data) | 10.00 mm ... 16.00 mm |
Product Description
Metal cable gland with protection. Cable bending and tensile compensator, long. thread: 6 mm, sealed cable margin: 7.5-15 mm, clamping margin: 10-16 mm, SW 24, thread: M20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
