HC-M-B24-MF-B

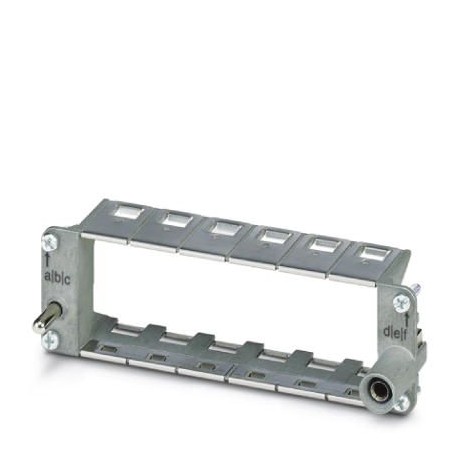

HC-M-B24-MF-B 1417402 PHOENIX CONTACT Module carrier frame
$0.00USD
3580 in stock
Key Specifications
GTIN:4055626112770
Orderkey:1417402
Catalog page:Page 584 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626112770 |
| Orderkey | 1417402 |
| Catalog page | Page 584 (C-2-2017) |
| Packing unit | 1 pc |
| (Material data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Country of origin | CN (China) |
| Custom tariff number | 85389099 |
| (Ambient conditions) | 18 ... 14 (for PE conductor – control side) |
| China RoHS (Material data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Material data) | Lead 7439-92-1 |
| Width (Key Commercial Data) | 34.4 mm |
| Height (Key Commercial Data) | 36.5 mm |
| Length (Key Commercial Data) | 111 mm |
| (Mechanical characteristics) | B48 |
| Size (Mechanical characteristics) | B24 |
| Type (Mechanical characteristics) | for the panel mounting side (a, b, c, ...) |
| Color (Mechanical characteristics) | silver |
| Contact carrier material (General) | Die-cast zinc alloy |
| Series (Mechanical characteristics) | HC-M-B |
| Weight per Piece (excluding packing) | 71.580 g |
| Connection (Mechanical characteristics) | Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Conductor cross section (Ambient conditions) | 4 mm² ... 6 mm² (for PE conductor - power side) |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 500 |
| Connection cross section AWG (Ambient conditions) | 12 ... 10 (for PE conductor - power side) |
| Assembly instructions (Mechanical characteristics) | HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm². |
| Number of module slots (Mechanical characteristics) | 6 |
