HC-M-08-GBIT-CT-F

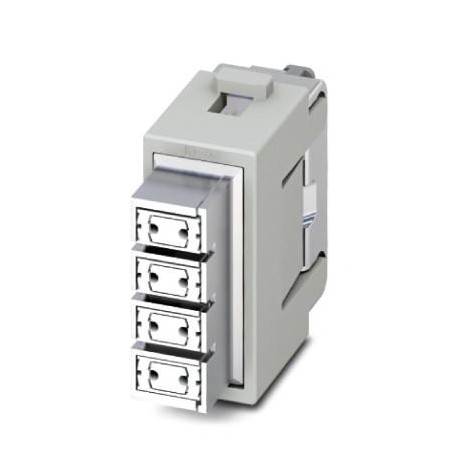

HC-M-08-GBIT-CT-F 1417303 PHOENIX CONTACT Contact insert module
$0.00USD
3037 in stock
Key Specifications
GTIN:4055626112466
Orderkey:1417303
Catalog page:Page 575 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626112466 |
| Orderkey | 1417303 |
| Catalog page | Page 575 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| Contact material (General) | Copper alloy |
| Rated current (Dimensions) | 5 A |
| Width (Key Commercial Data) | 26.35 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 40.3 mm |
| Length (Key Commercial Data) | 13.9 mm |
| (Mechanical characteristics) | In order to guarantee CAT6A, the VS-94-F/... cable (order number 1416457) should be used. Strain relief clamp, Order No. 1587742 |
| Connection profile (Dimensions) | 8 |
| Rated surge voltage (Dimensions) | 0.8 kV |
| Color (Mechanical characteristics) | light gray |
| Contact carrier material (General) | PC |
| Contact surface material (General) | Au |
| Phase conductor material (General) | Zinc alloy |
| Rated voltage (III/3) (Dimensions) | 50 V |
| Series (Mechanical characteristics) | HC-M-08-GBIT |
| Weight per Piece (excluding packing) | 50.000 g |
| Contact diameter (Ambient conditions) | 1 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Contact type (Mechanical characteristics) | turned |
| Phase conductor material surface (General) | Nickel |
| Conductor cross section (Ambient conditions) | 0.08 mm² ... 0.5 mm² |
| External cable diameter (Ambient conditions) | 5 mm ... 10 mm |
| Connection method (Mechanical characteristics) | Crimp connection |
| Degree of pollution (Mechanical characteristics) | 3 |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 500 |
| Connection cross section AWG (Ambient conditions) | 28 ... 20 |
| Overvoltage category (Mechanical characteristics) | III |
| Assembly instructions (Mechanical characteristics) | To ensure correct use, installation in housing with IP54 protection or better is required |
| Number of module slots (Mechanical characteristics) | 1 |
| Transmission characteristics (category) (Dimensions) | CAT6A |
| Flammability rating according to UL 94 (Material data) | V0 |
| Ambient temperature (operation) (Electrical characteristics) | -40 °C ... 85 °C (including heating up of contacts) |
| Stripping length of the individual wire (Ambient conditions) | 4.2 mm |
| Flammability rating according to UL 94 (Mechanical characteristics) | V0 |
Product Description
Contact insert module, number of poles: 8, Female, Crimped connection, 48 V, 5 A, 0.08 mm² ... 0.5 mm², outer diameter of cable:5 mm ... 7 mm, application: Data, without crimped contacts
