HC-M-03-MOD-STC

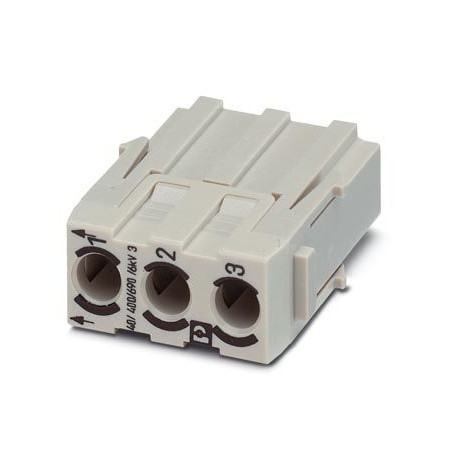

HC-M-03-MOD-STC 1645969 PHOENIX CONTACT Contact insert module
$0.00USD
3311 in stock
Key Specifications
GTIN:4017918941918
Note:Made to Order (non-returnable)
Orderkey:1645969
Catalog page:Page 555 (C-4-2015)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918941918 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1645969 |
| Catalog page | Page 555 (C-4-2015) |
| Packing unit | 2 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 18 mm (for conductor >= 6.4 mm in diameter) |
| Minimum order quantity | 200 pc |
| Contact material (General) | Copper alloy |
| Rated current (Dimensions) | 40 A |
| Width (Key Commercial Data) | 34.2 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 43.1 mm |
| Length (Key Commercial Data) | 14.6 mm |
| Connection profile (Dimensions) | 3 |
| Rated surge voltage (Dimensions) | 6 kV |
| Contact carrier material (General) | PC |
| Contact surface material (General) | Ag |
| Rated voltage (III/3) (Dimensions) | 500 V |
| Series (Mechanical characteristics) | HC-M-03 |
| Weight per Piece (excluding packing) | 14.800 g |
| Contact diameter (Ambient conditions) | 4 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection (Mechanical characteristics) | The CK4,0-EWZ tool (order no. 1662735) is required for removing the crimp contacts.At every "C" contact chamber, the position of the contact retaining springs is marked with two black markings on the connection side. From the connection side, the tool is pushed over the contact in a position-oriented manner, so that it touches both the retaining springs. Then insert it up to the limit stop. Do not turn the inserted tool. Push the conductor out of the insulating body along with the tool from the connection side. |
| Contact type (Mechanical characteristics) | turned |
| Minimum housing height (Ambient conditions) | 52 mm |
| Conductor cross section (Ambient conditions) | 1.5 mm² ... 10 mm² |
| External cable diameter (Ambient conditions) | 7.5 mm |
| Connection method (Mechanical characteristics) | Crimp connection |
| Connection in acc. with standard (Material data) | UL |
| Degree of pollution (Mechanical characteristics) | 3 |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 500 |
| Connection cross section AWG (Ambient conditions) | 16 ... 8 |
| Overvoltage category (Mechanical characteristics) | III |
| Assembly instructions (Mechanical characteristics) | Housing height ≥ 52 mm.Plug-in connections may only be operated only when there is no load/voltage. |
| Number of module slots (Mechanical characteristics) | 1 |
| Flammability rating according to UL 94 (Material data) | V0 |
| Wire diameter including insulation (Ambient conditions) | 7.5 mm |
| Ambient temperature (operation) (Electrical characteristics) | -40 °C ... 125 °C |
| Stripping length of the individual wire (Ambient conditions) | 9 mm (for 1.5 ... 2.5 mm²) |
| Connection in acc. with standard (Mechanical characteristics) | IEC / EN |
| Flammability rating according to UL 94 (Mechanical characteristics) | V0 |
