In Stock Hot Product
HC-KIT-B16-R01

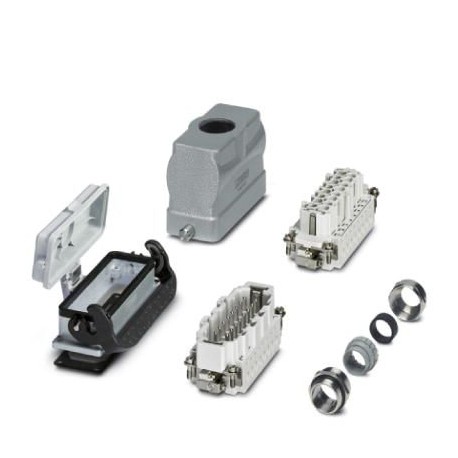

HC-KIT-B16-R01 1409710 PHOENIX CONTACT Connector set
$0.00USD
3367 in stock
Key Specifications
GTIN:4046356752466
Orderkey:1409710
Packing unit:1 pc
Country of origin:DE (Germany)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356752466 |
| Orderkey | 1409710 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Type (Dimensions) | B16 |
| Custom tariff number | 85366990 |
| Cable outlet (Dimensions) | straight |
| Rated current (Dimensions) | 20 A |
| Rated voltage (Dimensions) | 500 V |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection method (Dimensions) | Screw connection |
| Number of positions (Dimensions) | 16+PE |
| Rated surge voltage (Dimensions) | 6 kV |
| Rated voltage (III/3) (Dimensions) | 500 V |
| Cable diameter (Key Commercial Data) | 11 mm ... 16 mm |
| Weight per Piece (excluding packing) | 606.800 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Degree of protection for housing (Dimensions) | IP65 |
| Flammability rating according to UL 94 (General) | V0 |
Product Description
Plug-in connector set consisting of: B16 sleeves and recessed housing, 16-pole connector and female insert, M25 cable gland
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable gland, cable gland material: Nickel-plated brass, external cable diameter 11 mm ... 17 mm, shielding: no, connecting thread: M25 x 1.5, color: silver, with O-ring
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
