HC-KIT-B06-R01
HC-KIT-B06-R01 1409671 PHOENIX CONTACT Connector set
$0.00USD
4563 in stock
Key Specifications
GTIN:4046356752428
Orderkey:1409671
Packing unit:1 pc
Country of origin:DE (Germany)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356752428 |
| Orderkey | 1409671 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Type (Dimensions) | B6 |
| Custom tariff number | 85366990 |
| Cable outlet (Dimensions) | straight |
| Rated current (Dimensions) | 24 A |
| Rated voltage (Dimensions) | 500 V |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection method (Dimensions) | Screw connection |
| Number of positions (Dimensions) | 6+PE |
| Rated surge voltage (Dimensions) | 6 kV |
| Rated voltage (III/3) (Dimensions) | 500 V |
| Cable diameter (Key Commercial Data) | 9 mm ... 13 mm |
| Weight per Piece (excluding packing) | 385.500 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Degree of protection for housing (Dimensions) | IP65 |
| Flammability rating according to UL 94 (General) | V0 |
Product Description

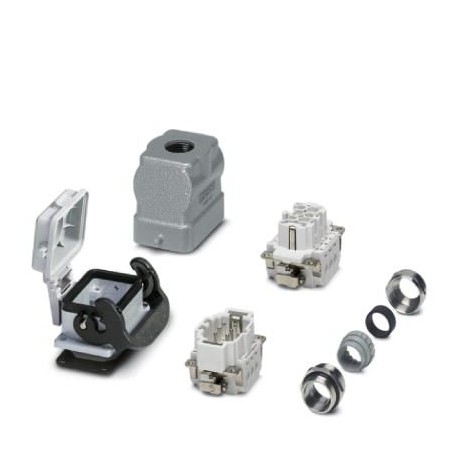

Plug-in connector set consisting of: B-6 sleeves and recessed housing, 6-pole connector and female insert, M20 cable gland
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable gland, cable gland material: Nickel-plated brass, external cable diameter 6 mm ... 12 mm, shielding: no, connecting thread: M20 x 1.5, color: silver, with O-ring
