HC-K 4/2-EBUS

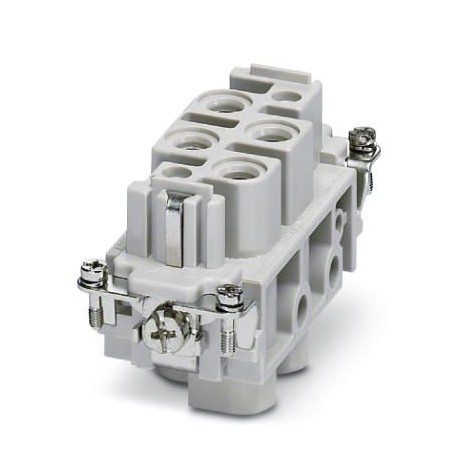

HC-K 4/2-EBUS 1686876 PHOENIX CONTACT Contact insert
$0.00USD
4816 in stock
Key Specifications
GTIN:4017918924126
Orderkey:1686876
Packing unit:1 pc
(Material data):16 A (control contacts)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918924126 |
| Orderkey | 1686876 |
| Packing unit | 1 pc |
| (Material data) | 16 A (control contacts) |
| Country of origin | RO (Romania) |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | 7.5 mm (Control circuit) |
| Note (Key Commercial Data) | For HEAVYCON ADVANCE and HEAVYCON housing of type B16, with third-party logo on the product. |
| Size (Key Commercial Data) | B16 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Rated current (Material data) | 80 A (power contacts) |
| Connection (Key Commercial Data) | Use wire end protection (screw connections do not have wire protection) |
| Rated surge voltage (Material data) | 8 kV (power contacts) |
| Weight per Piece (excluding packing) | 120.700 g |
| Contact material (Ambient conditions) | Cu alloy |
| Rated voltage (III/3) (Material data) | 830 V (power contacts) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Key Commercial Data) | Screw connection (power contacts) |
| Contact numbering (Key Commercial Data) | 1 - 4 |
| Screwdriver blade (Key Commercial Data) | 0.8 x 4.5 mm (power contacts) |
| Tightening torque (Key Commercial Data) | 3 Nm (Power contacts for cross sections of 2.5 mm² ... 16 mm²; (2 Nm for cross section 2.5 mm²)) |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 4+2+PE |
| Overvoltage category (Key Commercial Data) | III |
| Assembly instructions (Key Commercial Data) | To ensure correct use, installation in housing with IP54 protection or better is required |
| No. of power contacts (Key Commercial Data) | 4 |
| Conductor cross section (Key Commercial Data) | 1.5 mm² ... 16 mm² (power contacts) |
| Contact carrier material (Ambient conditions) | PC |
| No. of control contacts (Key Commercial Data) | 2 |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 500 |
| Connection cross section AWG (Key Commercial Data) | 16 ... 6 (power contacts) |
| Connection in acc. with standard (Electrical characteristics) | UL |
| Stripping length of the individual wire (Key Commercial Data) | 14 mm (Power circuit) |
| Material of contact surface, power contact (Ambient conditions) | Ag |
| Material of contact surface, control contact (Ambient conditions) | Ag |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Contact insert, number of poles: 4+2+PE, size: B16, power contacts: 4, control contacts: 2, Female, Screw connection, 830 V, 80 A, 1.5 mm² ... 16 mm²
