HC-HS06-I-UT-M

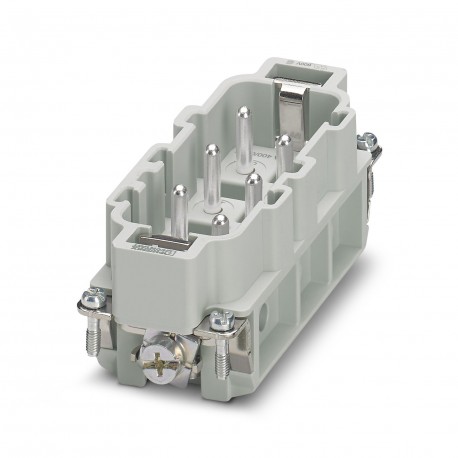

HC-HS06-I-UT-M 1406531 PHOENIX CONTACT HEAVYCON male insert, HS6 series, 6-pos., screw connection
$0.00USD
3996 in stock
Key Specifications
:690 V (Conductor-Conductor)
Note:For HEAVYCON housing B16 and B32
Type:B16
Rated current:41 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 690 V (Conductor-Conductor) | |
| Note | For HEAVYCON housing B16 and B32 |
| Type | B16 |
| Rated current | 41 A |
| Contact material | Copper alloy |
| Pollution degree | 3 |
| Connection method | Screw connection |
| Screwdriver blade | PH1 |
| Tightening torque | 1.2 Nm |
| Number of positions | 6+PE |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Assembly instructions | Connectors may be operated only when there is no load/voltage. |
| Rated voltage (III/3) | 400 V (Conductor-PE) |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Conductor cross section | 0.5 mm² ... 6 mm² |
| Contact carrier material | PC |
| Contact surface material | Ag |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 20 ... 10 |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Connection in acc. with standard | IEC / EN |
| Rated voltage for power contacts | 400/690 V |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 10 mm |
Product Description
Contact insert, number of poles: 6+PE, size: B16, number of connections per pole: 1, Male, Screw connection, 400 V/690 V, 41 A, 0.5 mm² ... 6 mm², Application: Power
