HC-EVO-D15-BWS-PLR-BK

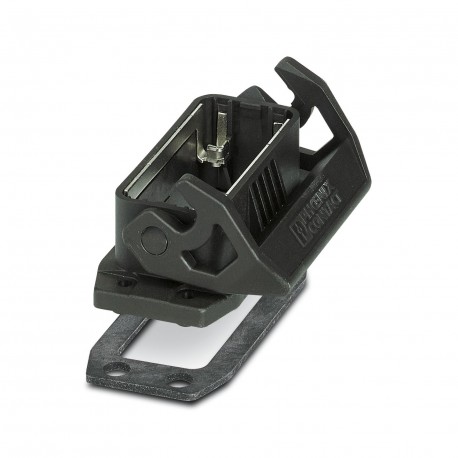

HC-EVO-D15-BWS-PLR-BK 1411336 PHOENIX CONTACT Housing
$0.00USD
4215 in stock
Key Specifications
:V0 (Interlock)
Type:D15
Width:39 mm
Height:26 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| V0 (Interlock) | |
| Type | D15 |
| Width | 39 mm |
| Height | 26 mm |
| Length | 82 mm |
| General | For contact inserts HC-D15, A10 |
| Application | Standard |
| Housing type | Panel mounting base |
| Locking type | Latch |
| Product type | Housing with locking latch |
| Hole diameter | 3.3 mm |
| Seal material | NBR |
| Product family | HC-EVO-D |
| Impact strength | IK08 |
| Article revision | 02 |
| Housing material | PA 6.6-FR |
| Tightening torque | 0.5 Nm ... 0.8 Nm (For M3 mounting screws on the panel-mount base) |
| Dimensional drawing | |
| Pg screw connection | none |
| Degree of protection | IP66 |
| Locking latch material | PA |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Width of the assembly cutout | 24 mm |
| Drill hole distance, vertical | 17.5 mm |
| Length of the assembly cutout | 58 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Drill hole distance, horizontal | 70 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
Product Description
Recessed housing D15, with longitudinal flange, material: PA, height: 26 mm, cable gland: without, Standard, with flat joint
