HC-EVO-B16-HHFD-PLBK

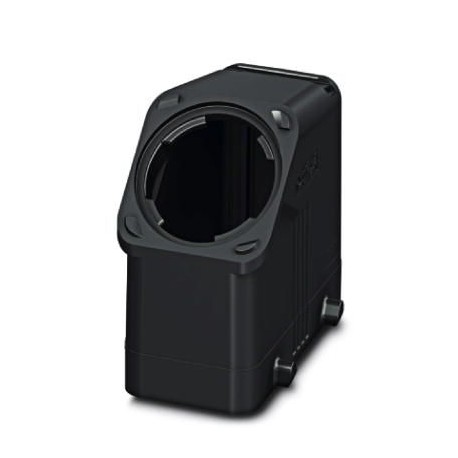

HC-EVO-B16-HHFD-PLBK 1407643 PHOENIX CONTACT Housing
$0.00USD
4366 in stock
Key Specifications
GTIN:4046356777070
Orderkey:1407643
Catalog page:Page 612 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356777070 |
| Orderkey | 1407643 |
| Catalog page | Page 612 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| (Ambient conditions) | lateral |
| Note (Ambient conditions) | For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K, HV06-I-PR, HV 6-E...C |
| Size (Ambient conditions) | B16 |
| Color (Ambient conditions) | black |
| Width (Key Commercial Data) | 44 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 78 mm |
| Length (Key Commercial Data) | 93.5 mm |
| Connection (Ambient conditions) | The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. It enables the creation of a straight or a lateral cable outlet. The EVO screw connection is assembled by hand or using a pipe wrench. |
| Cable outlet (Ambient conditions) | straight |
| Housing type (Ambient conditions) | Sleeve housing |
| Locking type (Ambient conditions) | for double locking latch |
| Weight per Piece (excluding packing) | 102.400 g |
| Housing material (Ambient conditions) | PA |
| Screw connection (Ambient conditions) | none |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Degree of protection (IP) (Dimensions) | IP66 |
| Degree of protection (NEMA) (Dimensions) | 12 (UL 50e) |
| No. of cable outlets (Ambient conditions) | 1 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
HEAVYCON EVO overhead housing made of plastic, with bayonet flange for EVO screw connection, B16, for transverse locking, height 78 mm, without EVO screw connection
