HC-EVO-B16-BWSC-PLRBK

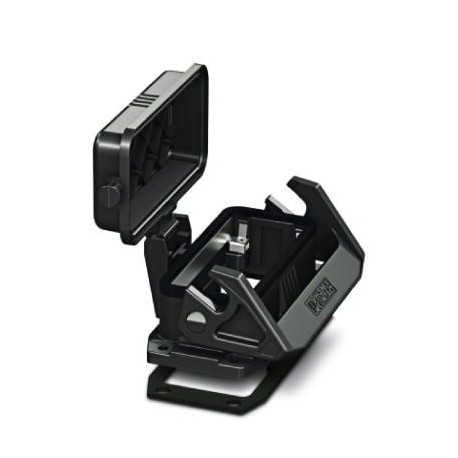

HC-EVO-B16-BWSC-PLRBK 1407647 PHOENIX CONTACT Housing
$0.00USD
3865 in stock
Key Specifications
GTIN:4046356777100
Orderkey:1407647
Catalog page:Page 608 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356777100 |
| Orderkey | 1407647 |
| Catalog page | Page 608 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| Note (Ambient conditions) | For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K, HV06-I-PR, HV 6-E...C |
| Size (Ambient conditions) | B16 |
| Color (Ambient conditions) | black |
| Torque (Ambient conditions) | 0.5 Nm ... 1.7 Nm (Fixing screws for panel mounting base) |
| Width (Key Commercial Data) | 53 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 30.5 mm |
| Length (Key Commercial Data) | 114 mm |
| Connection (Ambient conditions) | Not for HC-B 24-ADP-B..... adapter plates |
| Housing type (Ambient conditions) | Panel mounting base |
| Locking type (Ambient conditions) | with single locking latch |
| Material lock (Ambient conditions) | PA |
| Weight per Piece (excluding packing) | 127.000 g |
| Housing material (Ambient conditions) | PA |
| Protective cover (Ambient conditions) | yes |
| Screw connection (Ambient conditions) | none |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Degree of protection (IP) (Dimensions) | IP66 (when plugged in or with locked protective cover) |
| Degree of protection (NEMA) (Dimensions) | 12 (UL 50e) |
| Assembly instructions (Ambient conditions) | Not for D series terminal adapters |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Material, protective cover (Ambient conditions) | PA |
| Flammability rating according to UL 94 (General) | V0 |
| Width of the assembly cutout (Key Commercial Data) | 35 mm |
| Length of the assembly cutout (Key Commercial Data) | 86 mm |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
HEAVYCON EVO recessed housing, plastic, B16, with longitudinal lock, height 30.5 mm, with flat joint, with protective cover
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
