HC-EVO-B06-CHWS-PLRBK

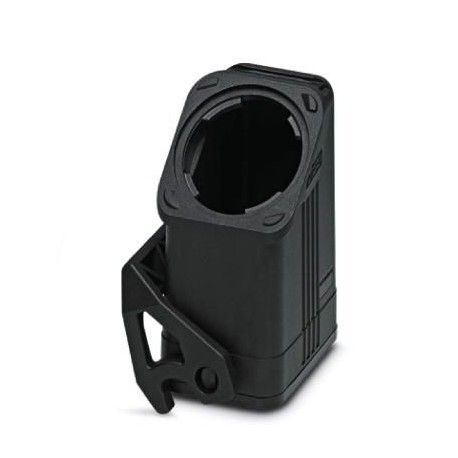

HC-EVO-B06-CHWS-PLRBK 1407625 PHOENIX CONTACT Housing
$0.00USD
4230 in stock
Key Specifications
GTIN:4046356776875
Orderkey:1407625
Catalog page:Page 588 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356776875 |
| Orderkey | 1407625 |
| Catalog page | Page 588 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| (Ambient conditions) | lateral |
| Note (Ambient conditions) | For contact inserts HC-B6, BB10, DD24, M |
| Size (Ambient conditions) | B6 |
| Color (Ambient conditions) | black |
| Width (Key Commercial Data) | 44 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 90 mm |
| Length (Key Commercial Data) | 60 mm |
| Connection (Ambient conditions) | The coupling housing must be supplemented with the EVO screw connection. The EVO screw connection is available in four sizes. The EVO screw connection is mounted with the aid of a pipe wrench, for example. |
| Cable outlet (Ambient conditions) | straight |
| Housing type (Ambient conditions) | Coupling housings |
| Locking type (Ambient conditions) | with single locking latch |
| Material lock (Ambient conditions) | PA |
| Seal material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 95.090 g |
| Housing material (Ambient conditions) | PA |
| Screw connection (Ambient conditions) | none |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Degree of protection (IP) (Dimensions) | IP66 |
| Degree of protection (NEMA) (Dimensions) | 12 (UL 50e) |
| No. of cable outlets (Ambient conditions) | 1 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
B6 coupling housing, with longitudinal flange, material: PA, cable outlets: 1, straight/side, height: 90 mm, cable gland: without, Standard
