HC-DD42-I-CT-M

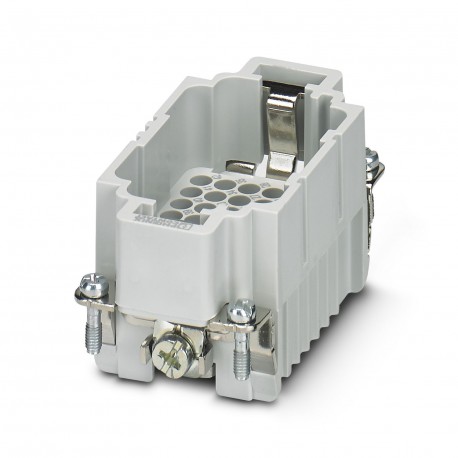

HC-DD42-I-CT-M 1584059 PHOENIX CONTACT Contact insert
$22.17USD
489 in stock
Key Specifications
:rolled
SCCR:5 kA (UL 2237)
Type:B10
Tests:DIN VDE 0627/86
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| rolled | |
| SCCR | 5 kA (UL 2237) |
| Type | B10 |
| Tests | DIN VDE 0627/86 |
| Width | 34 mm |
| Height | 32.5 mm |
| Length | 64 mm |
| Series | HC-DD |
| General | For housing HC-B10 |
| Application | Signal |
| Product type | Contact insert with a fixed no. of positions |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Rated current | 10 A |
| Article revision | 13 |
| Contact diameter | 1.6 mm |
| Contact material | Copper alloy |
| Contact numbering | 1 - 42 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| Connection profile | 42+PE |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 42 |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Connection technology | Crimp connection |
| Contact material type | turned |
| Rated voltage (III/3) | 250 V |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Minimum housing height | 72 mm |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Contact carrier material | PC |
| Contact surface material | Ag (alternatively Au) |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 26 ... 14 |
| Drill hole distance, vertical | 27 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Drill hole distance, horizontal | 57 mm |
| Connection in acc. with standard | IEC / EN |
| Number of connections per position | 1 |
| Constructional and testing regulations | DIN VDE 0627/86 |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 8 mm (0.14 mm² ... 1.5 mm²) |
Product Description
Contact insert, number of poles: 42+PE, size: B10, number of connections per pole: 1, Male, Crimped connection, 250 V, 10 A, 0.14 mm² ... 2.5 mm², application: Signal
