HC-D8-ESTC

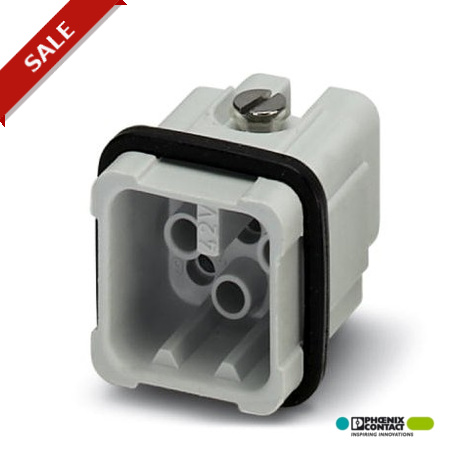

HC-D 8-ESTC 1775758 PHOENIX CONTACT HEAVYCON male insert, D8 series, 8-pos., crimp connection, with IP65 sea..
$0.00USD
4196 in stock
Key Specifications
:DIN VDE 0110/02.79
Note:For HC-D8 housing, crimp contacts CK1,6-ED (crimp contacts not included in scope of supply)
Type:D8
Connection:The inserts may only be used in plastic housings at voltages >42 V, since it is not possible to connect the protective conductor and the housing with each other.
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN VDE 0110/02.79 | |
| Note | For HC-D8 housing, crimp contacts CK1,6-ED (crimp contacts not included in scope of supply) |
| Type | D8 |
| Connection | The inserts may only be used in plastic housings at voltages >42 V, since it is not possible to connect the protective conductor and the housing with each other. |
| Rated current | 10 A |
| Contact material | Copper alloy |
| Pollution degree | 3 |
| Connection method | Crimp connection |
| Number of positions | 8 |
| Rated surge voltage | 0.8 kV |
| Overvoltage category | III |
| Assembly instructions | Connectors may be operated only when there is no load/voltage. |
| Rated voltage (III/3) | 50 V |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Contact carrier material | PA |
| Contact surface material | Ag (alternatively Au) |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 26 ... 14 |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Connection in acc. with standard | IEC / EN |
| Constructional and testing regulations | DIN VDE 0627/86 |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 8 mm |
