HC-D7-AML-26/GW

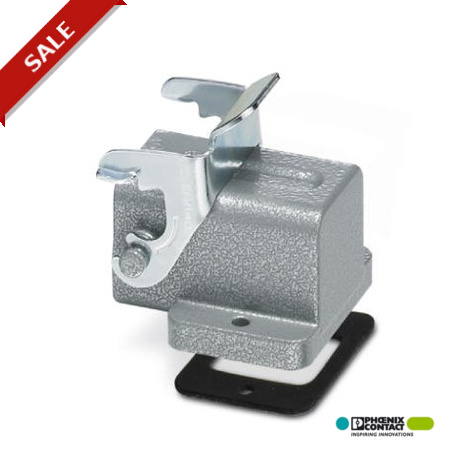

HC-D 7-AML-26/GW 1773022 PHOENIX CONTACT HEAVYCON D7 panel mounting base, with single locking latch, height:..
$0.00USD
4406 in stock
Key Specifications
:IP65 (with sealing screw)
Note:For contact inserts HC-D7, D8, A3, A4, B5, HS2-D7
Type:D7
Width:40.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IP65 (with sealing screw) | |
| Note | For contact inserts HC-D7, D8, A3, A4, B5, HS2-D7 |
| Type | D7 |
| Width | 40.5 mm |
| Height | 25.5 mm |
| Length | 38 mm |
| Housing type | Panel mounting base |
| Locking type | With single locking latch |
| Material lock | Steel, galvanized and passivated |
| Seal material | NBR |
| Housing material | Zinc die-cast |
| Screw connection | none |
| Housing surface material | Powder-coated, gray |
| Width of the assembly cutout | 21.5 mm |
| Length of the assembly cutout | 21.5 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Degree of protection of housing (IP) | IP54 |
