HC-D64-PTT-M

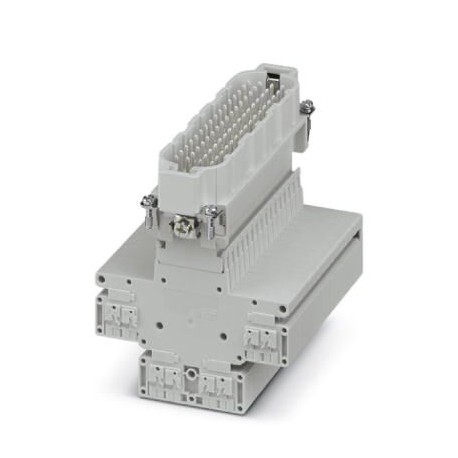

HC-D64-PTT-M 1423346 PHOENIX CONTACT Terminal adapter HC-D64-PTT-M 1423346
$0.00USD
4677 in stock
Key Specifications
GTIN:4055626340333
Orderkey:1423346
Packing unit:1
ETIM 6.0 (eCl@ss):EC000438
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626340333 |
| Orderkey | 1423346 |
| Packing unit | 1 |
| ETIM 6.0 (eCl@ss) | EC000438 |
| ETIM 7.0 (eCl@ss) | EC000438 |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | For solid conductors or stranded conductors with ferrules |
| Contact material (General) | Copper alloy |
| Note (Key Commercial Data) | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B24 type |
| eCl@ss 5.1 (Classifications) | 27261200 |
| eCl@ss 6.0 (Classifications) | 27261200 |
| eCl@ss 7.0 (Classifications) | 27440205 |
| eCl@ss 9.0 (Classifications) | 27440205 |
| Rated current (Material data) | 10 A |
| Contact carrier material (General) | PA |
| Contact surface material (General) | Ag |
| Rated surge voltage (Material data) | 6 kV |
| Rated voltage (III/3) (Material data) | 250 V |
| Connection method (Key Commercial Data) | Push-in connection |
| Number of positions (Key Commercial Data) | 64+PE |
| Assembly instructions (Key Commercial Data) | To ensure correct use, installation in housing with IP54 protection or better is required |
| Conductor cross section (Key Commercial Data) | 0.5 mm² ... 1.5 mm² |
| Connection cross section AWG (Key Commercial Data) | 20 ... 16 |
| Stripping length of the individual wire (Key Commercial Data) | 10 mm |
Product Description
Terminal adapter, number of poles: 64+PE, number of connections per pole: 2, Male, Push-in connection, 250 V, 10 A, 0.5 mm² ... 1.5 mm²
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Terminal adapter, number of positions: 64+PE, Pin, Push-in connection, 250 V, 10 A, 0.5 mm² ... 1.5 mm²
