In Stock Hot Product
HC-D50-SMQ-81/O2PG29

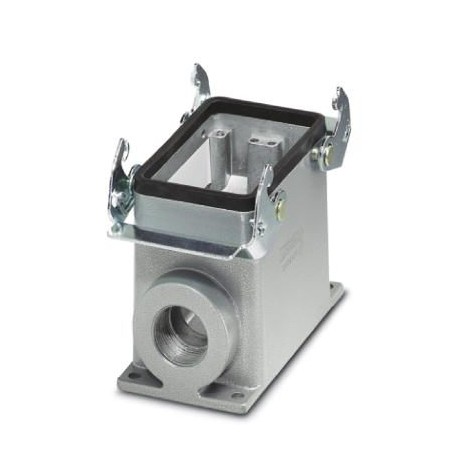

HC-D50-SMQ-81/O2PG29 1416401 PHOENIX CONTACT Housing
$0.00USD
3653 in stock
Key Specifications
GTIN:4055626072616
Note:Made to Order (non-returnable)
Orderkey:1416401
(General):No hazardous substances above threshold values
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626072616 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1416401 |
| (General) | No hazardous substances above threshold values |
| Catalog page | Page 511 (C-4-2015) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| China RoHS (General) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85389099 |
| Size (Ambient conditions) | D50 |
| Width (Key Commercial Data) | 59 mm |
| Height (Key Commercial Data) | 81 mm |
| Length (Key Commercial Data) | 106 mm |
| Cable outlet (Ambient conditions) | lateral |
| Housing type (Ambient conditions) | Box mounting bases |
| Locking type (Ambient conditions) | with double locking latch |
| Material lock (Ambient conditions) | Steel, galvanized |
| Weight per Piece (excluding packing) | 22.220 g |
| Housing material (Ambient conditions) | Aluminum die-cast |
| Screw connection (Ambient conditions) | none |
| No. of cable outlets (Ambient conditions) | 2 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Housing surface material (Ambient conditions) | Powder-coated, gray |
| Degree of protection of housing (IP) (Dimensions) | IP65 |
| Type of the screw connection (Ambient conditions) | 2x Pg29 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
