In Stock Hot Product
HC-D-TA-PG16-PLR-BK
HC-D-TA-PG16-PLR-BK 1411353 PHOENIX CONTACT Adapter
$0.00USD
4349 in stock
Key Specifications
GTIN:4046356929240
Orderkey:1411353
Catalog page:Page 658 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356929240 |
| Orderkey | 1411353 |
| Catalog page | Page 658 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 39269097 |
| Color (Ambient conditions) | black |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Ambient conditions) | PA |
| Seal material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 18.800 g |
| Housing material (Ambient conditions) | PA |
| Sealing material (Ambient conditions) | O-ring |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Thread type on seal side (Ambient conditions) | Pg16 |
| Degree of protection (IP) (Key Commercial Data) | IP66 (DIN IEC 60529) |
| Flammability rating according to UL 94 (General) | V2 |
| Type of the screw connection (Ambient conditions) | Pg16 |
| Thread type on connection side (Ambient conditions) | Bayonet D plastic |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 (Ambient conditions) | V2 |
Product Description

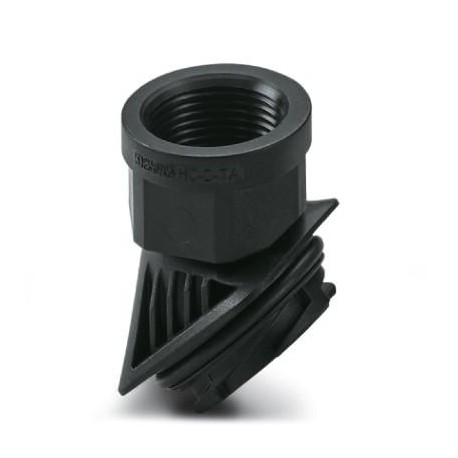

Plastic thread adapter with bayonet lock, for the EVO D housing series, for Pg16 complete screw connections.
