HC-D 64-ESTC

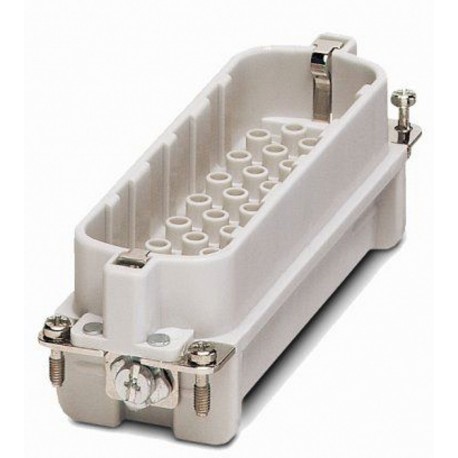

HC-D 64-ESTC 1772528 PHOENIX CONTACT HEAVYCON male insert, D64 series, 64-pos., crimp connection
$0.00USD
3214 in stock
Key Specifications
:Here, coding pins and sockets have been prescribed to avoid incorrect contacting when plugged in at an angle.
Type:D64
Tests:DIN VDE 0627/86
Width:34 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Here, coding pins and sockets have been prescribed to avoid incorrect contacting when plugged in at an angle. | |
| Type | D64 |
| Tests | DIN VDE 0627/86 |
| Width | 34 mm |
| Height | 32.5 mm |
| Length | 111 mm |
| General | For HEAVYCON ADVANCE housings of B24 type and HEAVYCON housings of B24/48 types, crimp contacts CK1,6-ED / CK1,6-BR (crimp contacts not included in the scope of supply) |
| Product type | Contact insert with a fixed no. of positions |
| Test voltage | 4 kV AC |
| Assembly note | Connectors may be operated only when there is no load/voltage. |
| Rated current | 10 A |
| Contact material | Copper alloy |
| Contact numbering | 1 - 64 |
| Connection profile | 64+PE |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 64 |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Connection technology | Crimp connection |
| Rated voltage (III/3) | 250 V |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Contact carrier material | PA |
| Contact surface material | Ag (alternatively Au) |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 26 ... 14 |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Connection in acc. with standard | IEC / EN |
| Constructional and testing regulations | DIN VDE 0627/86 |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 8 mm |
Product Description
Contact insert, number of positions: 64+PE, size: D64, Pin, Crimp connection, 250 V, 10 A, 0.14 mm2 ... 2.5 mm2
