HC-D 4-1BU

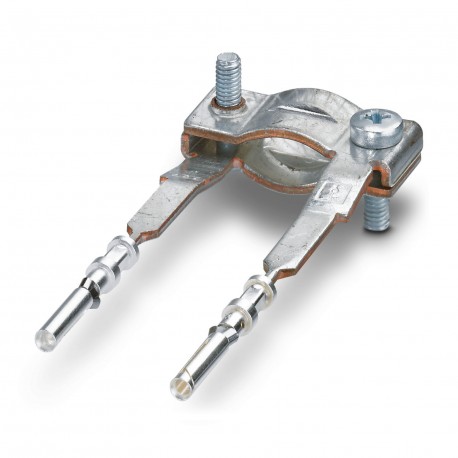

HC-D 4-1BU 1886143 PHOENIX CONTACT Shield connection clip
$0.00USD
4879 in stock
Key Specifications
General:for HC-D40, HC-D64 contact carriers
Product type:Shield connection
Contact diameter:1.6 mm
Contact material:Copper alloy
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| General | for HC-D40, HC-D64 contact carriers |
| Product type | Shield connection |
| Contact diameter | 1.6 mm |
| Contact material | Copper alloy |
| Connection method | Crimp connection |
| Contact material type | turned |
| Rated voltage (III/3) | 60 V |
| External cable diameter | 6 mm ... 9 mm |
| Contact surface material | hard-silver plated |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Stripping length of the individual wire | 6 mm |
Product Description
Display connection for a shielded cable on female contact brackets, without loose crimped contacts
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
