HC-D 25-ESTC-R

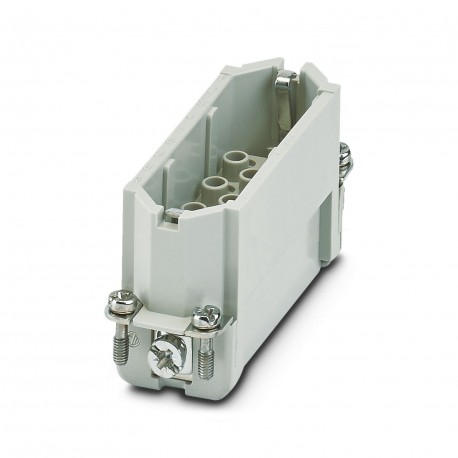

HC-D 25-ESTC-R 1679472 PHOENIX CONTACT Contact insert
$0.00USD
3941 in stock
Key Specifications
:Connectors may be plugged in only when there is no load/voltage.
Type:D25
Tests:DIN VDE 0627/86
Width:22.7 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Connectors may be plugged in only when there is no load/voltage. | |
| Type | D25 |
| Tests | DIN VDE 0627/86 |
| Width | 22.7 mm |
| Height | 34 mm |
| Length | 73 mm |
| Series | HC-D |
| General | For HC-D25 housing, crimp contacts CK1,6-ER (crimp contacts not included in scope of supply) |
| Product type | Contact insert with a fixed no. of positions |
| Test voltage | 4 kV AC |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Rated current | 10 A |
| Contact diameter | 1.6 mm |
| Contact material | Copper alloy |
| Connection profile | 25+PE |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 25 |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Connection technology | Crimp connection |
| Contact material type | rolled |
| Rated voltage (III/3) | 250 V |
| Conductor cross section | 0.14 mm² ... 1.5 mm² |
| Contact carrier material | PC |
| Contact surface material | Ag (alternatively Au) |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 26 ... 16 |
| Drill hole distance, vertical | 16 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Drill hole distance, horizontal | 66 mm |
| Connection in acc. with standard | IEC / EN |
| Constructional and testing regulations | DIN VDE 0627/86 |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 3 mm +0,5 mm (0.14 mm² ... 0.5 mm²) |
