HC-D 25-AMLD

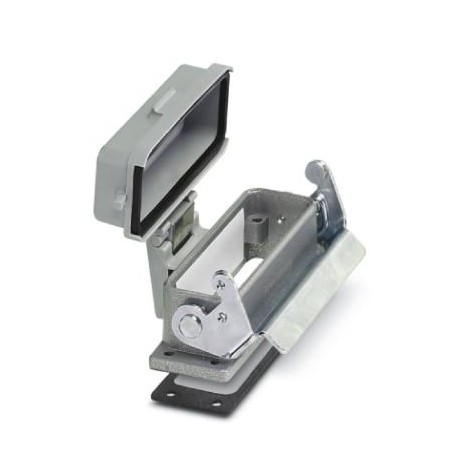

HC-D 25-AMLD 1672754 PHOENIX CONTACT Housing
$0.00USD
4763 in stock
Key Specifications
GTIN:4017918152536
Note:Made to Order (non-returnable)
Orderkey:1672754
(General):No hazardous substances above threshold values
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918152536 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1672754 |
| (General) | No hazardous substances above threshold values |
| Catalog page | Page 509 (C-4-2015) |
| Packing unit | 10 pc |
| (Dimensions) | IP54 (with closed protective cover) |
| Country of origin | DE (Germany) |
| China RoHS (General) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85389099 |
| Size (Ambient conditions) | D25 |
| Width (Key Commercial Data) | 30.5 mm |
| Height (Key Commercial Data) | 26 mm |
| Length (Key Commercial Data) | 96 mm |
| Housing type (Ambient conditions) | Panel mounting base |
| Locking type (Ambient conditions) | with single locking latch |
| Material lock (Ambient conditions) | Steel, galvanized |
| Weight per Piece (excluding packing) | 183.300 g |
| Housing material (Ambient conditions) | Aluminum die-cast |
| Protective cover (Ambient conditions) | yes |
| Screw connection (Ambient conditions) | none |
| Assembly instructions (Ambient conditions) | The flat gasket is supplied closed. The required opening is not created until the assembly stage. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Housing surface material (Ambient conditions) | Powder-coated, gray |
| Material, protective cover (Ambient conditions) | PA |
| Degree of protection of housing (IP) (Dimensions) | IP65 (When plugged in) |
| Width of the assembly cutout (Key Commercial Data) | 24 mm |
| Length of the assembly cutout (Key Commercial Data) | 74 mm |
