HC-COM-BAWS-PL-BK

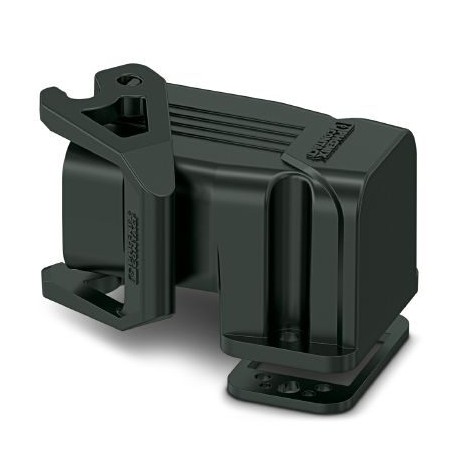

HC-COM-BAWS-PL-BK 1012433 PHOENIX CONTACT Panel mounting base COM, with single locking latch, material: PA, ..
$0.00USD
4784 in stock
Key Specifications
GTIN:4055626488592
Orderkey:1012433
(Drawings):
Catalog page:Page 652 (C-2-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626488592 |
| Orderkey | 1012433 |
| (Drawings) | |
| Catalog page | Page 652 (C-2-2019) |
| Packing unit | 1 pc |
| UNSPSC 11 (ETIM) | 31261502 |
| Width (Drawings) | 64.5 mm |
| Country of origin | CN (China) |
| ETIM 4.0 (eCl@ss) | EC000437 |
| ETIM 5.0 (eCl@ss) | EC000437 |
| ETIM 6.0 (eCl@ss) | EC000437 |
| ETIM 7.0 (eCl@ss) | EC000437 |
| Height (Drawings) | 41.7 mm |
| Length (Drawings) | 46.6 mm |
| UNSPSC 13.2 (ETIM) | 31261501 |
| UNSPSC 18.0 (ETIM) | 31261501 |
| UNSPSC 19.0 (ETIM) | 31261501 |
| UNSPSC 20.0 (ETIM) | 31261501 |
| UNSPSC 21.0 (ETIM) | 31261501 |
| UNSPSC 6.01 (ETIM) | 31261502 |
| UNSPSC 12.01 (ETIM) | 31261502 |
| Custom tariff number | 85389099 |
| UNSPSC 7.0901 (ETIM) | 31261502 |
| Size (Ambient conditions) | COM |
| Color (Ambient conditions) | black |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| eCl@ss 4.0 (Classifications) | 27140816 |
| eCl@ss 4.1 (Classifications) | 27140816 |
| eCl@ss 5.0 (Classifications) | 27143424 |
| eCl@ss 5.1 (Classifications) | 27261200 |
| eCl@ss 6.0 (Classifications) | 27261200 |
| eCl@ss 7.0 (Classifications) | 27440202 |
| eCl@ss 8.0 (Classifications) | 27440202 |
| eCl@ss 9.0 (Classifications) | 27440202 |
| eCl@ss 10.0.1 (Classifications) | 27440202 |
| Housing type (Ambient conditions) | Panel mounting base |
| Locking type (Ambient conditions) | with single locking latch |
| Material lock (Ambient conditions) | PA |
| Seal material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 0.000 g |
| Housing material (Ambient conditions) | PA |
| Screw connection (Ambient conditions) | none |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of protection (IP) (Dimensions) | IP66 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
COM recessed housing, with longitudinal flange, material: PA, height: 36 mm, cable gland: without, Standard
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dimensional drawing
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
