HC-BS-PG21

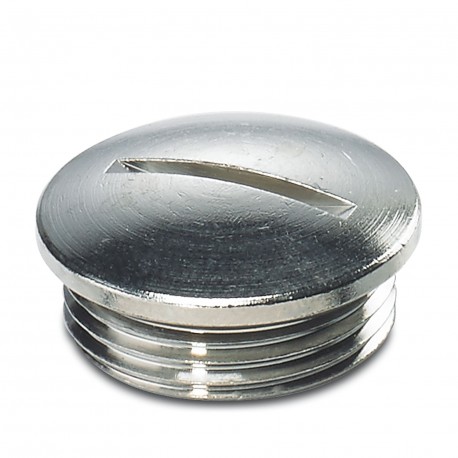

HC-BS-PG21 1674529 PHOENIX CONTACT Screw plug
$4.84USD
2108 in stock
Key Specifications
GTIN:4017918135423
Orderkey:1674529
Catalog page:Page 711 (C-2-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918135423 |
| Orderkey | 1674529 |
| Catalog page | Page 711 (C-2-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 74153300 |
| Halogen-free (General) | no |
| Minimum order quantity | 10 pc |
| Color (Ambient conditions) | silver |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Length (Key Commercial Data) | 11 mm |
| Material (Ambient conditions) | Brass, nickel-plated |
| O-ring material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 20.420 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Degree of protection (IP) (Dimensions) | IP68 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 80 °C |
| Hexagon angular dimension (Key Commercial Data) | 30 mm (Diameter (no corners)) |
| Thread type connection side (Ambient conditions) | Pg21 |
| Thread type on connection side (Ambient conditions) | Pg21 |
| Length of the connecting thread (Key Commercial Data) | 7 mm |
Product Description
Locking screw, material: Brass, nickel-plated, connection thread: Pg21, color: silver
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
