HC-BS-PG16

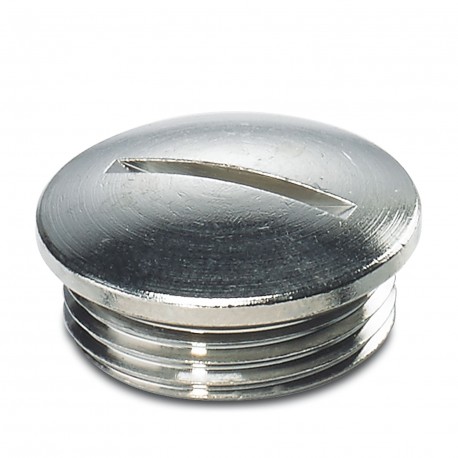

HC-BS-PG16 1674516 PHOENIX CONTACT Screw plug
$2.76USD
3661 in stock
Key Specifications
:26 mm
Length:10 mm
Diameter:26 mm
Material:Brass, nickel-plated
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 26 mm | |
| Length | 10 mm |
| Diameter | 26 mm |
| Material | Brass, nickel-plated |
| Halogen-free | no |
| Product type | Plug for cable screw gland |
| Article revision | 02 |
| Dimensional drawing | |
| Pg screw connection | Pg16 |
| Degree of protection | IP68 |
| Seal material O-ring | NBR |
| Housing surface material | Ni |
| Hexagon angular dimension | Diameter (no corners) |
| Thread type connection side | Pg16 |
| Material for screw connection | Brass, nickel-plated |
| Ambient temperature (operation) | -20 °C ... 80 °C |
| Length of the connecting thread | 6 mm |
Product Description
Locking screw, material: Brass, nickel-plated, connection thread: Pg16, color: silver
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
