HC-B6-SML-52/M2M20

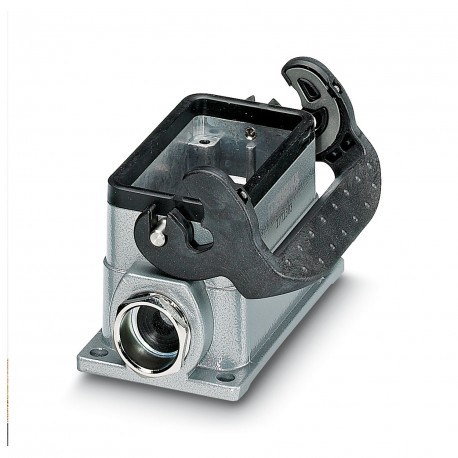

HC-B 6-SML-52/M2M20 1586743 PHOENIX CONTACT Housing
$0.00USD
3173 in stock
Key Specifications
GTIN:4046356426831
Note:Made to Order (non-returnable)
Orderkey:1586743
(General):No hazardous substances above threshold values
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356426831 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1586743 |
| (General) | No hazardous substances above threshold values |
| Catalog page | Page 572 (PC-2011) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| China RoHS (General) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85389099 |
| (Key Commercial Data) | 5 mm ... 12 mm (Cable 2) |
| Size (Ambient conditions) | B6 |
| Width (Key Commercial Data) | 52 mm |
| Height (Key Commercial Data) | 52 mm |
| Length (Key Commercial Data) | 84 mm |
| Cable outlet (Ambient conditions) | lateral |
| Housing type (Ambient conditions) | Box mounting bases |
| Locking type (Ambient conditions) | with single locking latch |
| Material lock (Ambient conditions) | Stainless steel, handle: PA |
| Seal material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 226.640 g |
| Housing material (Ambient conditions) | Aluminum die-cast |
| Screw connection (Ambient conditions) | with |
| Cable seal material (Ambient conditions) | NBR |
| Cable gland material (Ambient conditions) | Nickel-plated brass |
| No. of cable outlets (Ambient conditions) | 2 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Wrench size, union nut (Key Commercial Data) | 20 mm |
| External cable diameter (Key Commercial Data) | 5 mm ... 12 mm (Cable 1) |
| Housing surface material (Ambient conditions) | Powder-coated, gray |
| Degree of protection of housing (IP) (Dimensions) | IP65 |
| Material grip body interlock (Ambient conditions) | PA |
| Type of the screw connection (Ambient conditions) | 2x M20 |
Product Description
Skirting housing, with longitudinal flange, height 52 mm, with cable gland, 2x M20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
