HC-B6-EBUZZ

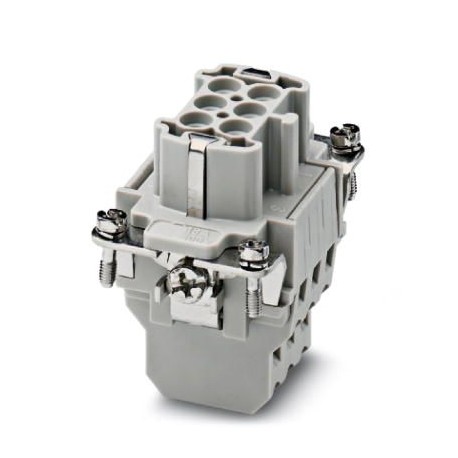

HC-B 6-EBUZZ 1647365 PHOENIX CONTACT Contact insert
$0.00USD
4407 in stock
Key Specifications
GTIN:4017918948948
Note:Made to Order (non-returnable)
Orderkey:1647365
Catalog page:Page 518 (PC-2011)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918948948 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1647365 |
| Catalog page | Page 518 (PC-2011) |
| Packing unit | 1 pc |
| Country of origin | RO (Romania) |
| Custom tariff number | 85366990 |
| Size (Key Commercial Data) | B6 |
| Rated current (Material data) | 16 A |
| Rated surge voltage (Material data) | 6 kV |
| Weight per Piece (excluding packing) | 63.500 g |
| Contact material (Ambient conditions) | Copper alloy |
| Rated voltage (III/3) (Material data) | 500 V |
| Connection method (Key Commercial Data) | Spring-cage connection |
| Contact numbering (Key Commercial Data) | 1 - 6 |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C (including heating up of contacts) |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 6+PE |
| Overvoltage category (Key Commercial Data) | III |
| Assembly instructions (Key Commercial Data) | For housing h ≥ 72 mm. Connectors may be operated only when there is no load/voltage. |
| Conductor cross section (Key Commercial Data) | 0.14 mm² ... 2.5 mm² |
| Contact carrier material (Ambient conditions) | PC |
| Contact surface material (Ambient conditions) | Ag |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 500 |
| Connection cross section AWG (Key Commercial Data) | 26 ... 14 |
| Connection in acc. with standard (Electrical characteristics) | CUL |
| Stripping length of the individual wire (Key Commercial Data) | 10 mm ±1 mm |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
