HC-B6-AML

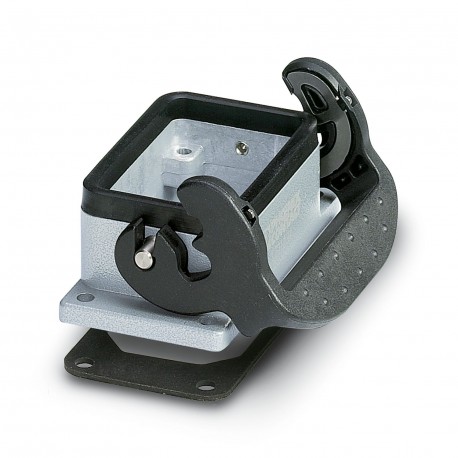

HC-B 6-AML 1771134 PHOENIX CONTACT Housing
$0.00USD
3929 in stock
Key Specifications
:CR
Type:B6
Width:43 mm
Height:29 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| CR | |
| Type | B6 |
| Width | 43 mm |
| Height | 29 mm |
| Length | 80 mm |
| General | For contact inserts HC-B6, BB10, DD24, M |
| Shielded | no |
| Application | Standard |
| Housing type | Panel mounting base |
| Locking type | Latch |
| Product type | Housing with locking latch |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Tightening torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Dimensional drawing | |
| Pg screw connection | none |
| Degree of protection | IP65 (When plugged in) |
| Locking latch material | Stainless steel, handle: PA |
| Housing surface material | Powder-coated, gray |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 52 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Product Description
Recessed housing HEAVYCON B6, with longitudinal lock, height 29 mm, with flat joint
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
