HC-B10-I-PT-M

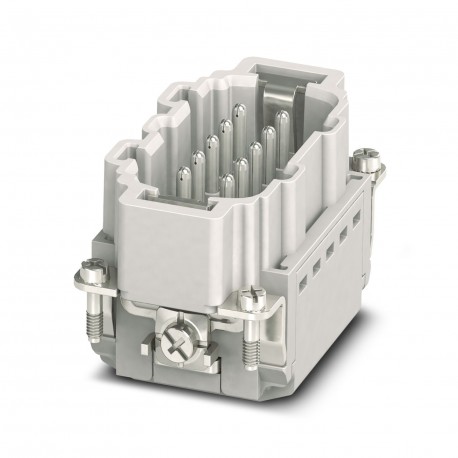

HC-B10-I-PT-M 1407730 PHOENIX CONTACT HEAVYCON pin insert, B10 series, 10 + PE-pos., push-in connection
$0.00USD
3884 in stock
Key Specifications
:0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
SCCR:5 kA (UL 2237)
Type:B10
Width:34 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) | |
| SCCR | 5 kA (UL 2237) |
| Type | B10 |
| Width | 34 mm |
| Height | 34.4 mm |
| Length | 64 mm |
| Series | HC-B |
| General | only use flexible conductors with ferrules |
| Application | Power |
| Product type | Contact insert with a fixed no. of positions |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Rated current | 16 A (power contacts) |
| Article revision | 09 |
| Contact diameter | 2.5 mm |
| Contact material | Copper alloy |
| Stripping length | 8 mm ... 10 mm |
| Contact numbering | 1 - 10 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| Connection profile | 10+PE |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 10 |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Connection technology | Push-in connection |
| Contact material type | rolled |
| Rated voltage (III/3) | 500 V |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Contact carrier material | PC |
| Contact surface material | Ag/Sn (tarnish protection) |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 26 ... 14 |
| Drill hole distance, vertical | 27 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Drill hole distance, horizontal | 57 mm |
| Connection in acc. with standard | IEC / EN |
| Number of connections per position | 1 |
| Flammability rating according to UL 94 | V0 |
Product Description
Contact insert, number of poles: 10+PE, size: B10, number of connections per pole: 1, Male, Push-in connection, 500 V, 16 A, 0.14 mm² ... 2.5 mm², Application: Power
