In Stock Hot Product
HC-B10-HCLFD-PR-BK
HC-B10-HCLFD-PR-BK 1414631 PHOENIX CONTACT Protective covers
$0.00USD
4067 in stock
Key Specifications
GTIN:4055626030821
Orderkey:1414631
Catalog page:Page 654 (C-2-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626030821 |
| Orderkey | 1414631 |
| Catalog page | Page 654 (C-2-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389099 |
| Note (Ambient conditions) | Protective cover for supporting base element with double locking latch |
| Size (Ambient conditions) | B10 |
| Color (Ambient conditions) | black |
| Width (Key Commercial Data) | 46 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 21.6 mm |
| Length (Key Commercial Data) | 76 mm |
| Material (Ambient conditions) | PA |
| Connection (Ambient conditions) | Plastic protective cover for short-term protection |
| Seal present (Ambient conditions) | yes |
| Seal material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 22.220 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Degree of protection (IP) (Dimensions) | IP66 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 100 °C |
| Flammability rating according to UL 94 (General) | HB |
| Diameter of retaining cord eyelet (Key Commercial Data) | 30 mm |
| Flammability rating according to UL 94 (Ambient conditions) | HB |
Product Description

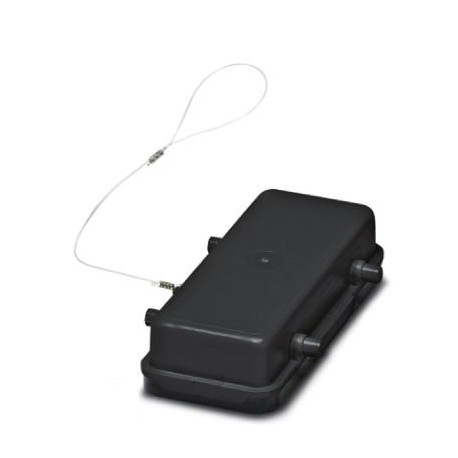

B10 protection cap, for cross flange, protective cap material: PA, height: 21.6 mm, seal: yes, retaining cord ring diameter: 30 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
