HC-B-BF

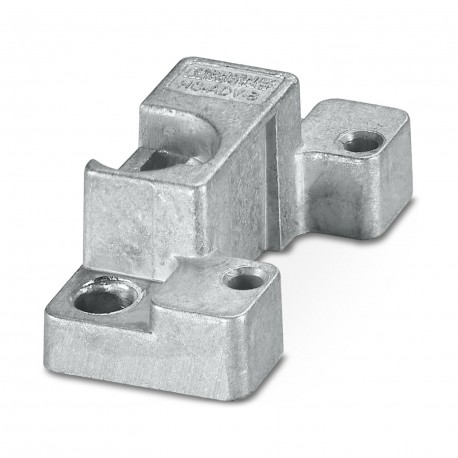

HC-B-BF 1604641 PHOENIX CONTACT Mounting flange
$1.61USD
6256 in stock
Key Specifications
General:2 for every connector
Material:Die-cast zinc
Locking type:Nut
Product type:Panel-mount flange
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| General | 2 for every connector |
| Material | Die-cast zinc |
| Locking type | Nut |
| Product type | Panel-mount flange |
| Assembly note | In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. |
| Hole diameter | 4.5 mm |
| Article revision | 05 |
| Dimensional drawing | |
| Pg screw connection | none |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Product Description
for HEAVYCON ADVANCE TMB housing with bayonet lock
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
