HC-B 24-ESTQ-2,5

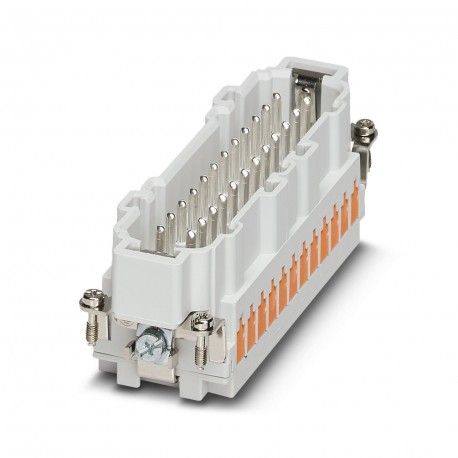

HC-B 24-ESTQ-2,5 1605640 PHOENIX CONTACT Contact insert
$22.78USD
477 in stock
Key Specifications
:B48
Type:B24
Width:34 mm
Height:35 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| B48 | |
| Type | B24 |
| Width | 34 mm |
| Height | 35 mm |
| Length | 111 mm |
| Series | HC-B |
| General | Connectors may be operated only when there is no load/voltage. |
| Product type | Contact insert with a fixed no. of positions |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Rated current | 16 A |
| Article revision | 06 |
| Contact diameter | 2.5 mm |
| Contact material | Copper alloy |
| Contact numbering | 1 - 24 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| Connection profile | 24+PE |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 24 |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Connection technology | QUICKON connection |
| Contact material type | rolled |
| Rated voltage (III/3) | 500 V |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2) |
| Conductor cross section | 0.34 mm² ... 2.5 mm² (Litz wire structure VDE 0295, Class 1 - 5/litz wire diameter >= 0.2 mm) |
| Contact carrier material | PA |
| Contact surface material | Ag |
| Material Wire insulation | PVC / PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 22 ... 14 |
| Drill hole distance, vertical | 27 mm |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Drill hole distance, horizontal | 104 mm |
| Number of connections per position | 1 |
| Flammability rating according to UL 94 | V0 |
Product Description
Contact insert, number of poles: 24+PE, size: B24, number of connections per pole: 1, Male, QUICKON connection, 500 V, 16 A, 0.34 mm² ... 2.5 mm²
