HC-B 16-ADP/1 DSUB 37

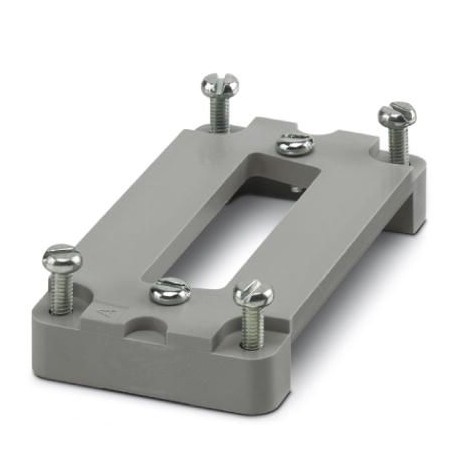

HC-B 16-ADP/1 DSUB 37 1775512 PHOENIX CONTACT Adapter plate
$0.00USD
3969 in stock
Key Specifications
GTIN:4017918038113
Note:Made to Order (non-returnable)
Orderkey:1775512
Catalog page:Page 667 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918038113 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1775512 |
| Catalog page | Page 667 (C-2-2017) |
| Packing unit | 2 pc |
| Country of origin | DE (Germany) |
| Type (Dimensions) | B16 |
| Color (Dimensions) | gray |
| Custom tariff number | 85472000 |
| Material (Dimensions) | PA |
| Minimum order quantity | 2 pc |
| Connection (Dimensions) | Mounting position of the adapter plate in the sleeve housing: T is visible after mounting in the housing. Mounting position of the adapter plate in the panel mounting base/socket housing/coupling housing: A is visible after mounting in the housing. Mounting position of the D-SUB (after mounting in the housing): in front of the mounting plate (front mounting) |
| Width (Key Commercial Data) | 34.5 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 10 mm |
| Length (Key Commercial Data) | 85 mm |
| Number of positions (Dimensions) | 37 |
| Assembly instructions (Dimensions) | Mounting screws: 1) slotted self-tapping screw 2.9 x 6.5 DIN 7971 2) M3 x 14 slotted DIN 84 |
| Weight per Piece (excluding packing) | 17.000 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Flammability rating according to UL 94 (General) | HB |
| Flammability rating according to UL 94 (Dimensions) | HB |
Product Description
D-SUB adapter plate, for equipping with a D-SUB connector, number of poles 37, HC-C housing series 16...
