HC-A4-ESTS

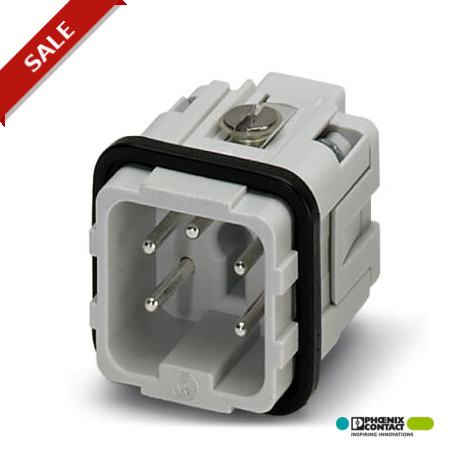

HC-A 4-ESTS 1774911 PHOENIX CONTACT HEAVYCON male insert, A4 series, 4-pos., screw connection without wire p..
$0.00USD
3855 in stock
Key Specifications
:DIN VDE 0110/02.79
Note:For housing HC-D7
Type:D7
Connection:Already includes one IP65 sealing screw
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN VDE 0110/02.79 | |
| Note | For housing HC-D7 |
| Type | D7 |
| Connection | Already includes one IP65 sealing screw |
| Rated current | 16 A |
| Contact material | Copper alloy |
| Pollution degree | 3 |
| Connection method | Screw connection |
| Tightening torque | 0.25 Nm |
| Number of positions | 4+PE |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Assembly instructions | Connectors may be operated only when there is no load/voltage. |
| Rated voltage (III/3) | 230 V (Conductor-PE) |
| Conductor cross section | 0.5 mm² ... 1.5 mm² |
| Contact carrier material | PA |
| Contact surface material | Ag |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 20 ... 16 |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Connection in acc. with standard | IEC / EN |
| Rated voltage for power contacts | 230/400 V |
| Constructional and testing regulations | DIN VDE 0627/86 |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 5 mm |
