HC-A03-I-PT-M

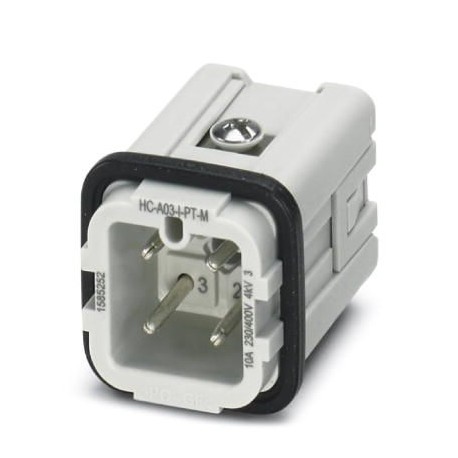

HC-A03-I-PT-M 1585252 PHOENIX CONTACT Contact insert
$0.00USD
4249 in stock
Key Specifications
GTIN:4046356284981
Orderkey:1585252
Catalog page:Page 501 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356284981 |
| Orderkey | 1585252 |
| Catalog page | Page 501 (C-2-2017) |
| Packing unit | 1 pc |
| (Material data) | 400 V (Conductor-Conductor) |
| Country of origin | CN (China) |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | For solid conductors or stranded conductors with ferrules |
| Note (Key Commercial Data) | for housing HC-D7 |
| Size (Key Commercial Data) | D7 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Rated current (Material data) | 10 A |
| Degree of protection (IP) (General) | IP20 |
| Rated surge voltage (Material data) | 4 kV |
| Weight per Piece (excluding packing) | 13.480 g |
| Rated voltage (III/3) (Material data) | 230 V (Conductor-PE) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Key Commercial Data) | Push-in connection |
| Contact numbering (Key Commercial Data) | 1 - 3 |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 3+PE |
| Overvoltage category (Key Commercial Data) | III |
| Standards/regulations (Ambient conditions) | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Assembly instructions (Key Commercial Data) | To ensure correct use, installation in housing with IP54 protection or better is required |
| Conductor cross section (Key Commercial Data) | 0.14 mm² ... 1.5 mm² (with ferrule) |
| Contact carrier material (Ambient conditions) | PC |
| Contact surface material (Ambient conditions) | Ag |
| Rated voltage for power contacts (Material data) | 230/400 V |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 500 |
| Connection cross section AWG (Key Commercial Data) | 26 ... 16 (with ferrule) |
| Number of connections per position (Key Commercial Data) | 1 |
| Stripping length of the individual wire (Key Commercial Data) | 10 mm |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Contact insert, number of poles: 3+PE, size: D7, number of connections per pole: 1, Male, Push-in connection, 230 V/400 V, 10 A, 0.14 mm² ... 1.5 mm²
