HC-A 10-EBUS

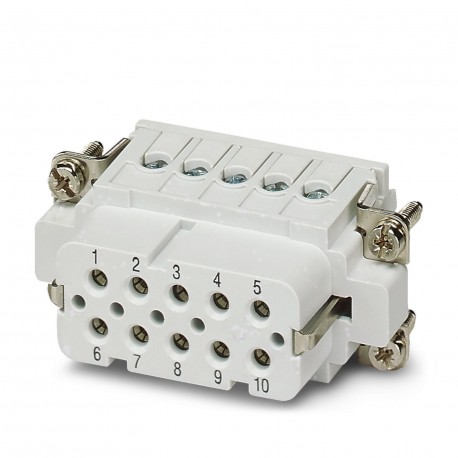

HC-A 10-EBUS 1773077 PHOENIX CONTACT HEAVYCON female insert, A10 series, 10-pos., screw connection
$0.00USD
4020 in stock
Key Specifications
:DIN VDE 0110/02.79
Type:D15
Tests:DIN VDE 0627/86
Width:23 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN VDE 0110/02.79 | |
| Type | D15 |
| Tests | DIN VDE 0627/86 |
| Width | 23 mm |
| Height | 33 mm |
| Length | 55.5 mm |
| Series | HC-A |
| General | for housing HC-D15 |
| Product type | Contact insert with a fixed no. of positions |
| Test voltage | 4 kV AC |
| Assembly note | Connectors may be operated only when there is no load/voltage. |
| Rated current | 16 A |
| Contact material | Copper alloy |
| Contact numbering | 1 - 10 |
| Screwdriver blade | 0.5 x 3.5 mm |
| Tightening torque | 0.5 Nm |
| Connection profile | 10+PE |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 10 |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Connection technology | Screw connection |
| Rated voltage (III/3) | 250 V |
| Conductor cross section | 0.5 mm² ... 2.5 mm² (applies to stranded conductors with ferrules) |
| Contact carrier material | PA |
| Contact surface material | Ag |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection cross section AWG | 20 ... 14 |
| Drill hole distance, vertical | 16 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Drill hole distance, horizontal | 49.5 mm |
| Connection in acc. with standard | IEC / EN |
| Constructional and testing regulations | DIN VDE 0627/86 |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 7 mm |
